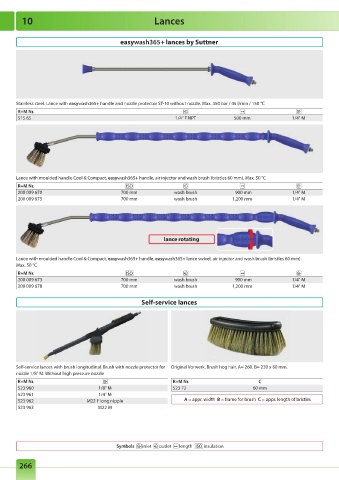

10                                            Lances



                                           easywash365+ lances by Suttner











       Stainless steel. Lance with easywash365+ handle and nozzle protector ST-10 without nozzle. Max. 350 bar / 45 l/min / 150 °C
       R+M Nr.
       515 65                                                  1/4" F NPT          500 mm               1/4" M











       Lance with moulded handle Cool & Compact, easywash365+ handle, air injector and wash brush (bristles 60 mm). Max. 50 °C
       R+M Nr.
       200 009 670                         700 mm             wash brush             900 mm             1/4" M
       200 009 675                         700 mm             wash brush           1,200 mm             1/4" M







                                                           lance rotating


       Lance with moulded handle Cool & Compact, easywash365+ handle, easywash365+ lance swivel, air injector and wash brush (bristles 60 mm).
       Max. 50 °C
       R+M Nr.
       200 009 673                         700 mm             wash brush             900 mm             1/4" M
       200 009 678                         700 mm             wash brush           1,200 mm             1/4" M


                                                   Self-service lances












       Self-service lances with brush longitudinal. Brush with nozzle protector for   Original Vorwerk. Brush hog hair. A= 260. B= 230 x 80 mm.
       nozzle 1/8" M. Without high pressure nozzle
       R+M Nr.                                                R+M Nr.                       C
       523 960                      1/8" M                    523 72                      60 mm
       523 961                      1/4" M
       523 962                  M22 F long nipple                 A = appr. width  B = frame for brush  C = appr. length of bristles
       523 963                     M22 M






                                          Symbols     inlet     outlet     length     insulation
