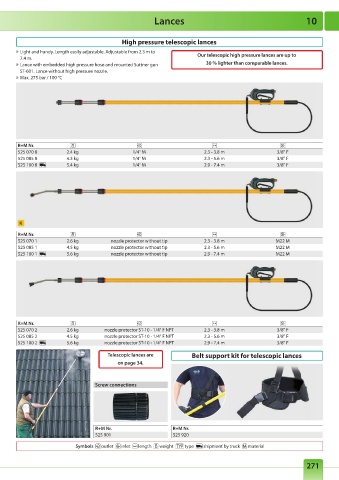

Page 272 - RM_2022

Lances 10

High pressure telescopic lances
» Light and handy. Length easily adjustable. Adjustable from 2.3 m to
Our telescopic high pressure lances are up to
7.4 m.
» Lance with embedded high pressure hose and mounted Suttner gun 30 % lighter than comparable lances.
ST-601. Lance without high pressure nozzle.
» Max. 275 bar / 100 °C

R+M Nr.
525 070 8 2.4 kg 1/4" M 2.3 - 3.8 m 3/8" F
525 085 8 4.3 kg 1/4" M 2.3 - 5.6 m 3/8" F
525 100 8 5.4 kg 1/4" M 2.9 - 7.4 m 3/8" F

K

R+M Nr.
525 070 1 2.6 kg nozzle protector without tip 2.3 - 3.8 m M22 M
525 085 1 4.5 kg nozzle protector without tip 2.3 - 5.6 m M22 M
525 100 1 5.6 kg nozzle protector without tip 2.9 - 7.4 m M22 M

R+M Nr.
525 070 2 2.6 kg nozzle protector ST-10 - 1/4" F NPT 2.3 - 3.8 m 3/8" F
525 085 2 4.5 kg nozzle protector ST-10 - 1/4" F NPT 2.3 - 5.6 m 3/8" F
525 100 2 5.6 kg nozzle protector ST-10 - 1/4" F NPT 2.9 - 7.4 m 3/8" F
Telescopic lances are Belt support kit for telescopic lances
on page 34.

Screw connections

R+M Nr. R+M Nr.
525 901 525 920
Symbols outlet inlet length weight type shipment by truck material

271
