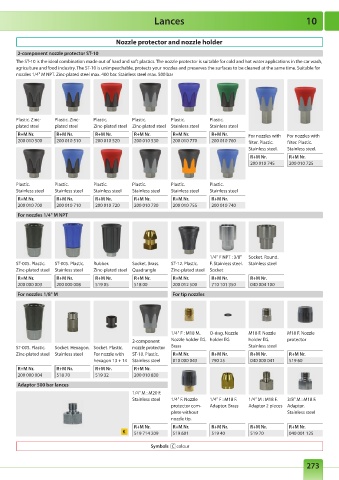

Page 274 - RM_2022

Lances 10

Nozzle protector and nozzle holder
2-component nozzle protector ST-10
The ST-10 is the ideal combination made out of hard and soft plastics. The nozzle protector is suitable for cold and hot water applications in the car wash,
agriculture and food industry. The ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time. Suitable for
nozzles 1/4" M NPT. Zinc-plated steel max. 400 bar. Stainless steel max. 500 bar

Plastic. Zinc- Plastic. Zinc- Plastic. Plastic. Plastic. Plastic.
plated steel plated steel Zinc-plated steel Zinc-plated steel Stainless steel Stainless steel
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. For nozzles with For nozzles with
200 010 500 200 010 510 200 010 520 200 010 530 200 010 770 200 010 760 filter. Plastic. filter. Plastic.
Stainless steel. Stainless steel.
R+M Nr. R+M Nr.
200 010 745 200 010 725

Plastic. Plastic. Plastic. Plastic. Plastic. Plastic.
Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 010 700 200 010 710 200 010 720 200 010 730 200 010 755 200 010 740
For nozzles 1/4" M NPT

1/4" F NPT : 3/8" Socket. Round.
ST-005. Plastic. ST-005. Plastic. Rubber. Socket. Brass. ST-12. Plastic. F. Stainless steel. Stainless steel
Zinc-plated steel Stainless steel Zinc-plated steel Quadrangle Zinc-plated steel Socket
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 000 003 200 000 008 519 05 518 00 200 012 500 710 101 350 040 004 100
For nozzles 1/8" M For tip nozzles

1/4" F : M18 M. O-ring. Nozzle M18 F. Nozzle M18 F. Nozzle
2-component Nozzle holder EG. holder EG holder EG. protector
ST-005. Plastic. Socket. Hexagon. Socket. Plastic. nozzle protector Brass Stainless steel
Zinc-plated steel Stainless steel For nozzle with ST-10. Plastic. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
hexagon 13 + 14 Stainless steel 010 000 043 790 25 040 000 041 519 60
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
200 000 004 518 70 519 32 200 010 830
Adaptor 500 bar lances
1/4" M : M20 F.
Stainless steel 1/4" F. Nozzle 1/4" F : M18 F. 1/4" M : M18 F. 3/8" M : M18 F.
protector com- Adaptor. Brass Adaptor 2 pieces Adaptor.
plete without Stainless steel
nozzle tip.
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
K 519 714 209 519 601 519 40 519 70 040 001 125

Symbols colour
