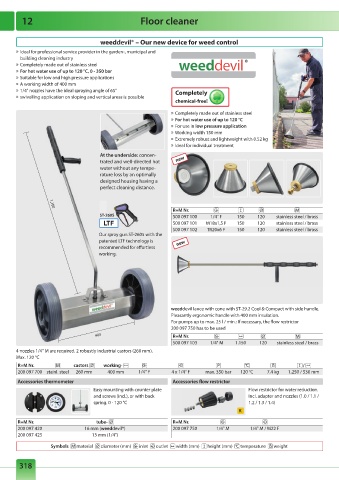

Page 319 - RM_2022

12 Floor cleaner

weeddevil® – Our new device for weed control
» Ideal for professional service provider in the garden-, municipal and
building cleaning industry
» Completely made out of stainless steel

» For hot water use of up to 120 °C, 0 - 350 bar
» Suitable for low and high pressure applications
» A working width of 400 mm
» 1/4" nozzles have the ideal spraying angle of 65°
Completely
» swivelling application on sloping and vertical areas is possible

chemical-free!
» Completely made out of stainless steel

» For hot water use of up to 120 °C
» For use in low pressure application
» Working width 150 mm
» Extremely robust and lightweight with 0.52 kg
» Ideal for individual treatment
At the underside: concen-
trated and well-directed hot new
water without any tempe-
rature loss by an optimally
designed housing having a
perfect cleaning distance.

1,100
R+M Nr.
ST-2605 500 097 100 1/4" F 150 120 stainless steel / brass
LTF 500 097 101 M18x1,5 F 150 120 stainless steel / brass
500 097 102 TR20x6 F 150 120 stainless steel / brass
Our spray gun ST-2605 with the
patented LTF technology is new
recommended for effortless
working.

weeddevil lance with cone with ST-29.2 Cool & Compact with side handle.
Pleasantly ergonomic handle with 400 mm insulation.
For pumps up to max. 25 l / min.: If necessary, the flow restrictor
200 097 750 has to be used
400 R+M Nr.
500 097 103 1/4" M 1.150 120 stainless steel / brass
4 nozzles 1/4" M are required. 2 robustly industrial castors (260 mm).
Max. 120 °C
R+M Nr. castors working- /
200 097 700 stainl. steel 260 mm 400 mm 1/4" F 4 x 1/4" F max. 350 bar 120 °C 7.4 kg 1,250 / 530 mm
Accessories thermometer Accessories flow restrictor
Easy mounting with counter plate Flow restrictor for water reduction.
and screws (incl.), or with back Incl. adapter and nozzles (1.0 / 1.1 /
spring. 0 - 120 °C 1.2 / 1.3 / 1.4)
K
R+M Nr. tube- R+M Nr.
200 097 420 16 mm (weeddevil®) 200 097 750 1/4" M 1/4" M / M22 F
200 097 425 13 mm (1/4")
Symbols material diameter (mm) inlet outlet width (mm) height (mm) temperature weight

318
