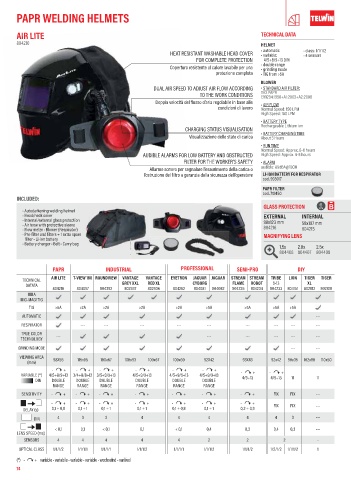

Page 74 - Telwin_2023

PAPR WELDING HELMETS

AIR LITEE
A I R L I T TECHNICAL DATA
804210
80 42 1 0 HELMET
• automatic • class: 1/1/1/2
HEAT RESISTANT WASHABLE HEAD COVER • variable: • 4 sensors
FOR COMPLETE PROTECTION 4/5÷8/9÷13 DIN
• double range
Copertura resistente al calore lavabile per una • grinding mode
protezione completa • TIG from >5A
BLOWER
DUAL AIR SPEED TO ADJUST AIR FLOW ACCORDING • STANDARD AIR FILTER:
TO THE WORK CONDITIONS TH2 PAPR
EN1294:1998+A1:2003+A2:2008
Doppia velocità del flusso d’aria regolabile in base alle
• AIR FLOW
condizioni di lavoro Normal Speed: 150 LPM
High Speed: 180 LPM
• BATTERY TYPE
Rechargeable Lithium ion
CHARGING STATUS VISUALISATION
• BATTERY CHARGING TIME
Visualizzazione dello stato di carica About 3 Hours
• RUN TIME
Normal Speed: Approx. 6-8 hours
AUDIBLE ALARMS FOR LOW BATTERY AND OBSTRUCTED High Speed: Approx. 4-6 hours
FILTER FOR THE WORKER’S SAFETY • ALARM
audible: 85dBA@10CM
Allarme sonoro per segnalare l’esaurimento della carica o
l’ostruzione del filtro a garanzia della sicurezza dell’operatore LI-ION BATTERY FOR RESPIRATOR
cod. 993017
PAPR FILTER
cod. 712450
INCLUDED:
6
GLASS PROTECTION
• Autodarkening welding helmet
• Head/neck cover EXTERNAL INTERNAL
• Internal/external glass protection n 98x123 mm
• Air hose with protective sleeve 58x107 mm
• Flow meter • Blower (Respirator) 804216 804215
• Pre-filter and filters + 1 extra spare re MAGNIFYING LENS
filter • Li-ion battery
• Battery charger • Belt • Carry bag
1,5x 2.0x 2.5x
804406 804407 804408
PAPR INDUSTRIAL PROFESSIONAL SEMI-PRO DIY
AIR LITE T-VIEW 180 ROUNDVIEW VANTAGE VANTAGE EYETRON JAGUAR JAGUAR STREAM STREAM TRIBE LION TIGER TIGER
TECHNICAL
DATATA GREY XXL RED XL CYBORG FLAME ROBOT 9-13 XL
804210 804097 804392 802937 802936 804262 804081 804082 804235 804234 804233 804151 802812 802818
MMA
MIG-MAG/TIG
TIG >5A >2A >2A >2A >2A >5A >5A >5A >5A
AUTOMATIC ---
RESPIRATOR --- --- --- --- --- --- --- --- ---
TRUE COLOR
TECHNOLOGY --- --- --- --- --- ---
GRINDING MODE --- ---
VIEWING AREA
(mm) 98X55 115x85 100x67 100x93 100x67 100x60 92X42 93X43 92x42 90x35 102x80 110x50
- + - + - + - + - + - + - + - +
VARIABLE (*) 4/5÷8/9÷13 3/4÷8/8÷12 3/5÷9/9÷13 4/5÷9/9÷13 4/5÷9/9÷13 4/5÷9/9÷13 4/9÷13 4/9÷13 11 11
DIN DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE DOUBLE
RANGE RANGE RANGE RANGE RANGE RANGE
SENSITIVITY - + - + - + - + - + - + - + FIX FIX ---
- + - + - + - + - + - + - + FIX FIX ---
DELAY (s) 0,1 ÷ 0,8 0,1 ÷ 1 0,1 ÷ 1 0,1 ÷ 1 0,1 ÷ 0,8 0,1 ÷ 1 0,2 ÷ 0,9
DIN 4 3 3 4 4 4 4 4 3 ---
< 0,1 0,1 < 0,1 0,1 < 0,1 0,4 0,3 0,4 0,3 ---
LENS SPEED (ms)
SENSORS 4 4 4 4 4 2 2 2 -
OPTICAL CLASS 1/1/1/2 1/1/1/1 1/1/1/1 1/1/1/2 1/1/1/1 1/1/1/2 1/1/1/2 1/2/1/2 1/1/1/2 1

(*) - + variable - variabile - variable - variable - wechselnd - variável
