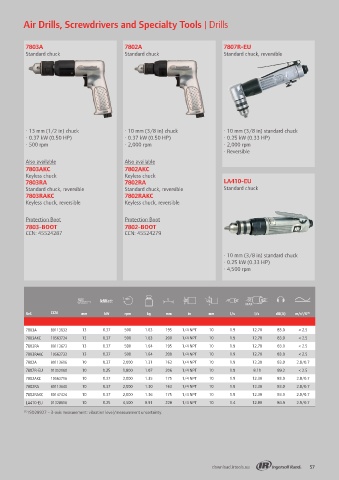

P. 57
Air Drills, Screwdrivers and Specialty Tools Air Drills, Screwdrivers and Specialty Tools | Drills
7803A 7802A 7807R-EU
Standard chuck Standard chuck Standard chuck, reversible
· 13 mm (1/2 in) chuck · 10 mm (3/8 in) chuck · 10 mm (3/8 in) standard chuck
· 0.37 kW (0.50 HP) · 0.37 kW (0.50 HP) · 0.25 kW (0.33 HP)
· 500 rpm · 2,000 rpm · 2,000 rpm
· Reversible
Also available Also available
7803AKC 7802AKC
Keyless chuck Keyless chuck
7803RA 7802RA LA410-EU
Standard chuck, reversible Standard chuck, reversible Standard chuck
7803RAKC 7802RAKC
Keyless chuck, reversible Keyless chuck, reversible
Protection Boot Protection Boot
7803-BOOT 7802-BOOT
CCN: 45524287 CCN: 45524279
7804XPA · 6.5 mm (1/4 in) Available in kits
Standard chuck, reversible · 0.12 kW (0.17 HP) 7804KA Standard chuck, reversible · 10 mm (3/8 in) standard chuck
· 1,600 rpm CCN: 47520772001 · 0.25 kW (0.33 HP)
· Only 0.8 kg and 180 mm · 4,500 rpm
· Composite housing
· Reversible
SIZE kWatt L
2
Ref. CCN mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1)
Includes 22-piece drill bit and driver set
7803A 80113632 13 0.37 500 1.63 195 1/4 NPT 10 1.9 12.70 83.0 < 2.5
7803AKC 10563724 13 0.37 500 1.63 200 1/4 NPT 10 1.9 12.70 83.0 < 2.5
7803RA 80113673 13 0.37 500 1.64 195 1/4 NPT 10 1.9 12.70 83.0 < 2.5
SIZE kWatt L 7803RAKC 10563732 13 0.37 500 1.64 200 1/4 NPT 10 1.9 12.70 83.0 < 2.5
7802A 80113616 10 0.37 2,000 1.31 163 1/4 NPT 10 1.9 12.30 83.0 2.8/0.7
Ref. CCN mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1) 7807R-EU 01352160 10 0.25 1,800 1.07 206 1/4 NPT 10 1.9 8.10 89.2 < 2.5
2
7802AKC 10563716 10 0.37 2,000 1.35 175 1/4 NPT 10 1.9 12.30 83.0 2.8/0.7
7804XPA 47520751001 10 0.19 1,875 0.80 193 1/4 NPT 10 0.9 7.65 84.3 2.9/0.8 7802RA 80113640 10 0.37 2,000 1.30 163 1/4 NPT 10 1.9 12.30 83.0 2.8/0.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. 7802RAKC 80147424 10 0.37 2,000 1.36 175 1/4 NPT 10 1.9 12.30 83.0 2.8/0.7
LA410-EU 01328616 10 0.25 4,500 0.91 228 1/4 NPT 10 1.4 12.80 84.9 2.9/0.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
