Page 52 - Vehicle Repair Tools 2019

Air Hammers Air Hammers | Round Shank | Needle Scaler | Accessories

122MAX 121/Q-EU 116-EU
Round shank Round shank Round shank

· Stroke: 67 mm · Stroke: 58 mm · Stroke: 67 mm
Musterbild Also available Also available Also available
· 3,500 blows per minute
· 3,000 blows per minute
· 3,500 blows per minute
· Power regulator
· Contains: quick-change retainer
121/QH-EU
122MAXH
116H-EU
· Hexagonal shank Hexagonal shank Hexagonal shank
Available in kits
Available in kits
122MAXK Round shank 125-EU LA426-EU Round shank
CCN: 47125869 Needle Scaler CCN: 01328640
122MAXHK Hexagonal shank LA427-EU Hexagonal shank
CCN: 46816757 CCN: 01328590

· Stroke: 28 mm
· 4,600 blows per minute
· Contains: steel needles

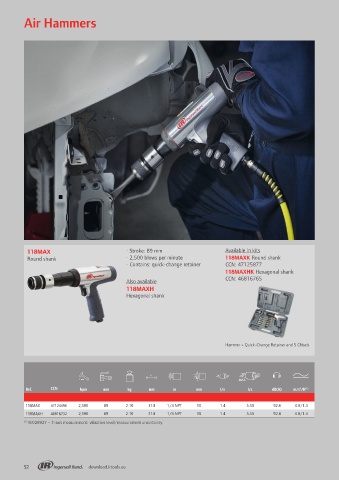

118MAX · Stroke: 89 mm Available in kits
Round shank · 2,500 blows per minute 118MAXK Round shank
· Contains: quick-change retainer CCN: 47125877 Hammer + Quick-Change Retainer and 5 Chisels Hammer + 6 Chisels
118MAXHK Hexagonal shank
Also available CCN: 46816765
118MAXH Air Hammers | Accessories
Hexagonal shank
• 115-183 (CCN: 03788510) spring retainer for 116-EU, 116H-EU,
LA426-EU and LA427-EU
• AVC10-183 (CCN: 03010980) spring retainer for 121/Q-EU and
121/QH-EU
• 9512 (CCN: 45563749) quick-change retainer for all models
• 9500 (CCN: 80117427) chisels, round shank (5 pieces)
Hammer + Quick-Change Retainer and 5 Chisels • 116H-K5 (CCN: 92536093) chisels, hexagonal shank (5 pieces) 115-183 9512 9500

L

L 1 min
1 min
2
Ref. CCN bpm mm kg mm in mm l/s l/s dB(A) m/s /K (1)
Ref. CCN bpm mm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

122MAX 47124482 3,500 67 1.80 218 1/4 NPT 10 1.4 5.50 94.2 5.5 /1.8
118MAX 47124490 2,500 89 2.10 314 1/4 NPT 10 1.4 5.50 92.6 4.0 /1.4
122MAXH 46816740 3,500 67 1.80 218 1/4 NPT 10 1.4 5.50 94.2 5.5 /1.8
118MAXH 46816732 2,500 89 2.10 314 1/4 NPT 10 1.4 5.50 92.6 4.0 /1.4
121/Q-EU 01343698 3,000 58 1.59 194 1/4 NPT 10 1.4 7.10 95.3 19.9 /4.6
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
121/QH-EU 01344944 3,000 58 1.59 194 1/4 NPT 10 1.4 7.10 95.3 19.9 /4.6
125-EU 01352178 4,600 29 2.83 465 1/4 NPT 8 3.8 7.10 96.6 8.3 /1.3
116-EU 01343755 3,500 67 1.54 198 1/4 NPT 10 1.4 7.10 101.4 14.8 /2.2
116H-EU 01343904 3,500 67 1.54 198 1/4 NPT 10 1.4 7.10 101.4 14.8 /2.2
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
