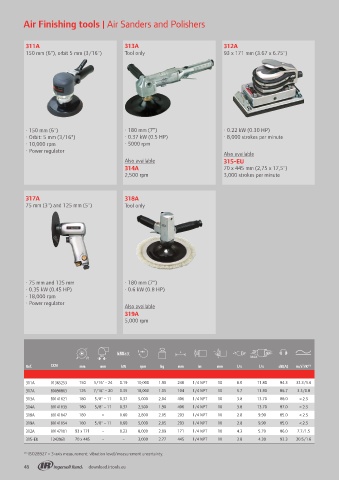

Page 48 - Vehicle Repair Tools 2019

Air Finishing tools | Air Sanders and Polishers Air Finishing tools | Pads, Disks and Bonnets

311A 313A 312A
150 mm (6"), orbit 5 mm (3/16") Tool only 93 x 171 mm (3.67 x 6.75") Quick-change pads & abrasives Hook-and-loop pad, discs & Accessories for 4151 and 4152
50 (2") and 75 mm (3") bonnets
75 mm (3")

· 150 mm (6") · 180 mm (7") · 0.22 kW (0.30 HP)
· Orbit: 5 mm (3/16") · 0.37 kW (0.5 HP) · 8,000 strokes per minute
· 10,000 rpm · 5000 rpm
· Power regulator
Also available
Also available 315-EU
314A 70 x 445 mm (2,75 x 17,5")
2,500 rpm 3,000 strokes per minute

317A 318A Ref. CCN Description Qty.
75 mm (3") and 125 mm (5") Tool only 50 mm (2") Diameter
02A-MEDPD 80199177 Quick-change pad with 1/4" mandrel 1
02A-CRSBR 80199193 Coarse coating removal discs 1
02A-MEDBR 80199185 Medium coating removal discs 1
02A-BBCRS-25 80207574 Quick-strip discs 25
02A-036AO 80199896 Aluminum oxide sanding discs, grit 36 1
02A-036AO 80199201 Aluminum oxide sanding discs, grit 80 1
75 mm (3") Diameter
03A-MEDPD 80198963 Quick-change pad with 1/4" mandrel 1
03A-CRSBR 80199037 Coarse coating removal discs 1
03A-MEDBR-25 80206220 Medium coating removal discs 25
03A-CRSBB-10 80216690 Quick-strip discs 10
· 75 mm and 125 mm · 180 mm (7") 03A-036AO 80200009 Aluminum oxide sanding discs, grit 36 1
· 0.35 kW (0.45 HP) · 0.6 kW (0.8 HP) 03A-080AO5 80199219 Aluminum oxide sanding discs, grit 80 1
· 18,000 rpm Backer pad
· Power regulator 03H-PAD-HL 80199136 Backer pad Ø 75 mm (3 in), hook & loop 1
Also available
319A Aluminum oxide sanding discs Grit 40 50
5,000 rpm 03H-040AO-50 80207582
03H-100AO-50 80206279 Grit 100 50
03H-180AO-50 80206295 Grit 180 50
03H-220AO-50 80206303 Grit 220 50
03H-320AO-50 80206329 Grit 320 50

03H-500AO-50 80206352 Grit 500 50
kWatt L Grit 800 50
03H-800AO-50 80205404
Polishing Bonnets
2
Ref. CCN mm mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1) 03F-SFTWL-6 80206170 Wool bonnet (for compounding) 6
03F-MEDFM-6 80206188 Waffl e bonnet/white (for compounding) 6
311A 01365253 150 5/16" - 24 0.19 10,000 1.90 248 1/4 NPT 10 8.0 11.80 84.3 32.3 /5.6 03F-SFTFM-6 80206196 Waffl e bonnet/yellow (for polishing) 6
Accessories for 4151 and 4152
317A 80090863 125 7/16" – 20 0.35 18,000 1.05 104 1/4 NPT 10 5.7 11.80 86.7 3.3 /0.8
4151JV 04662896 Jet-Vac conversion kit
313A 80141021 180 5/8" – 11 0.37 5,000 2.04 406 1/4 NPT 10 3.8 13.70 88.0 < 2.5
49988 04324455 Dust collection bags (20 pieces)
314A 80141039 180 5/8" – 11 0.37 2,500 1.90 406 1/4 NPT 10 3.8 13.70 87.0 < 2.5 49987 04324448 Dust collection bags (250 pieces)
318A 80141047 180 – 0.60 2,800 2.05 203 1/4 NPT 10 2.8 9.90 85.0 < 2.5 4151-747B 80095151 Rubber grip
4151-2-747BLK 22041941 Rubber grip, long handle
319A 80141054 180 5/8" – 11 0.60 5,000 2.05 203 1/4 NPT 10 2.8 9.90 85.0 < 2.5
49798 04248555 Rubber grip, medium
312A 80147101 93 x 171 – 0.22 8,000 2.09 171 1/4 NPT 10 4.3 5.70 86.0 7.7 /1.5
49799 04248563 Rubber grip, large
315-EU 1343961 70 x 445 – – 3,000 2.77 445 1/4 NPT 10 3.8 4.30 93.3 20.5 /1.6 49840 04252938 Rubber grips (3 pieces: small, medium and large)
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

48 download.irtools.eu download.irtools.eu 49
