Page 43 - Vehicle Repair Tools 2019

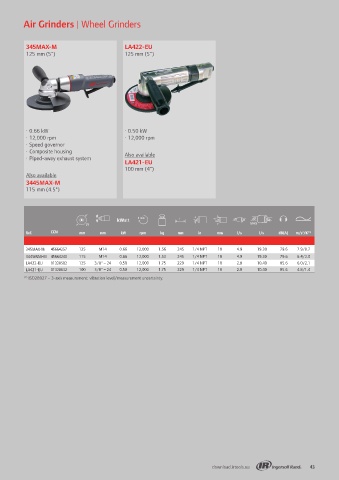

Air Grinders | Die Grinders Air Grinders | Wheel Grinders

301B Replacement collets 345MAX-M LA422-EU
Angle 125 mm (5“) 125 mm (5“)

Ref. CCN diameter
Collets for 301B, 302B, 307B, 308B, 5102MAX,
5108MAX and LA429-EU
· 0.19 kW 301-700C 80128952 Ø 1/8" · 0.66 kW · 0.50 kW
· 21,000 rpm 301-700B 04552600 Ø 6 mm · 12,000 rpm · 12,000 rpm
· Only 0.46 kg and 128 mm 301-700 80102346 Ø 1/4" · Speed governor
· Contains: 1/4" and 6 mm collets · Composite housing Also available
· Piped-away exhaust system
LA421-EU
100 mm (4")
LA429-EU Also available
Straight 3445MAX-M
115 mm (4.5")

kWatt L

2
Ref. CCN mm mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1)

345MAX-M 45664257 125 M14 0.66 12,000 1.56 245 1/4 NPT 10 4.9 19.30 79.6 7.9 /0.7
3445MAX-M 45664240 115 M14 0.66 12,000 1.53 245 1/4 NPT 10 4.9 19.30 79.6 6.4 /2.0
· 0.42 kW LA422-EU 01328582 125 3/8" – 24 0.50 12,000 1.75 229 1/4 NPT 10 2.8 10.40 85.6 6.0 /2.1
· 20,000 rpm LA421-EU 01328632 100 3/8" – 24 0.50 12,000 1.75 229 1/4 NPT 10 2.8 10.40 85.6 4.8 /1.4
· Only 0.54 kg (1)
· Contains: 1/4" and 6 mm collets ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

kWatt L

Ref. CCN mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

301B 48488308 1/4" + 6 0.19 21,000 0.46 128 1/4 NPT 10 2.8 11.30 91.8 5.9 /1.0
LA429-EU 01328558 1/4" + 6 0.42 22,000 0.54 142 1/4 NPT 10 1.8 9.00 91.0 3.2 /1.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

42 download.irtools.eu download.irtools.eu 43
