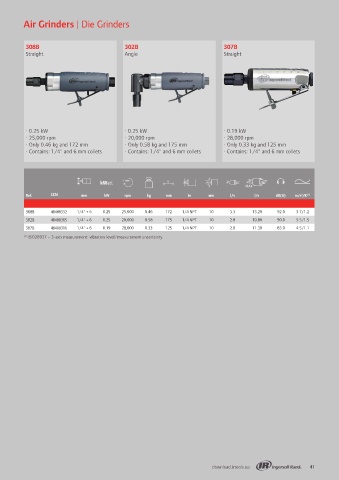

Page 41 - Vehicle Repair Tools 2019

Air Grinders Air Grinders | Die Grinders

308B 302B 307B
Straight Angle Straight

Musterbild · 0.25 kW · 0.25 kW · 0.19 kW

· 25,000 rpm
· 28,000 rpm
· 20,000 rpm
· Only 0.46 kg and 172 mm
· Only 0.58 kg and 175 mm
· Only 0.33 kg and 125 mm
· Contains: 1/4" and 6 mm collets
· Contains: 1/4" and 6 mm collets
· Contains: 1/4" and 6 mm collets
·

kWatt L

Ref. CCN mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

308B 48488332 1/4" + 6 0.25 25,000 0.46 172 1/4 NPT 10 3.3 13.20 92.0 3.7 /1.2
302B 48488365 1/4" + 6 0.25 20,000 0.58 175 1/4 NPT 10 2.8 10.80 90.0 5.5 /1.5
307B 48488316 1/4" + 6 0.19 28,000 0.33 125 1/4 NPT 10 2.8 11.30 83.0 4.5 /1.1
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

5102MAX Also available
Angle 5108MAX
Straight

· 0.30 kW · 0.30 kW
· 20,000 rpm · 20,000 rpm
· Only 0.64 kg and 178 mm · Only 0.64 kg and 178 mm
· Composite housing · Composite housing
· Contains: 1/4" and 6 mm collets · Contains: 1/4" and 6 mm collets

kWatt L

Ref. CCN mm kW rpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

5102MAX 48488357 1/4" + 6 0.30 20,000 0.64 180 1/4 NPT 10 2.8 11.80 84.1 3.3 /1.1
5108MAX 48488340 1/4" + 6 0.30 25,000 0.46 172 1/4 NPT 10 2.8 11.80 83.3 1.8 /0.8
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
