Page 36 - Vehicle Repair Tools 2019

Air Ratchets Air Ratchets | 1/4" | 3/8" | 1/2"

1105MAX-D3 1207MAX-D4 1077XPA
3/8“ 1/2“ 1/2“

· 41 Nm and 300 rpm · 88 Nm and 200 rpm · 73 Nm and 160 rpm
· Only 0.65 kg and 187 mm · Composite housing · Variable speed lever
· Composite housing · Power regulator · 360° adjustable exhaust
Musterbild Also available Also available Also available
· Power regulator
· Variable speed lever
· 360°adjustable exhaust
· Variable speed lever
107XPA
3/8“
1105MAX-D2
1207MAX-D3
· 1/4" 3/8“ Protection Boot
107-BOOT
Protection Boot
CCN: 45505328
103-BOOT
CCN: 45505310

105-D3 1770
3/8“ 1/2“

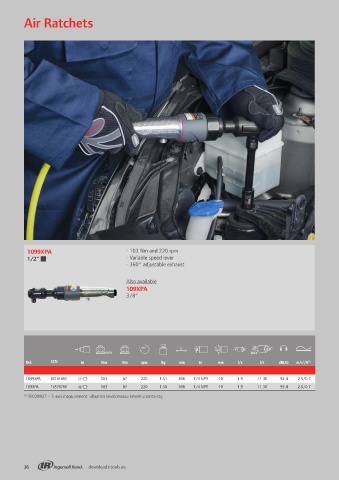

1099XPA · 103 Nm and 220 rpm · 34 Nm and 250 rpm · 81 Nm of maximum torque
1/2“ · Variable speed lever · Only 0.64 kg and 186 mm · Heat-treated head provides
· 360° adjustable exhaust · Variable speed lever exceptional durability
· Variable speed lever allows precise
Also available
Also available 105-D2 delivery of power
109XPA 1/4“
3/8“ Also available
170
Protection Boot 3/8“
103-BOOT
CCN: 45505310

L L

Ref. CCN in Nm Nm rpm kg mm in mm l/s l/s dB(A) m/s /K (1) Ref. CCN in Nm Nm rpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2
2

1099XPA 80181001 ½ " 103 87 220 1.51 306 1/4 NPT 10 1.9 11.30 92.4 2.5 /0.7 1105MAX-D3 45649480 ⅜ " 41 34 300 0.65 187 1/4 NPT 10 1.6 9.40 88.9 5.7 /1.0
109XPA 16578700 ⅜ " 103 87 220 1.50 306 1/4 NPT 10 1.9 11.30 92.4 2.5 /0.7 1105MAX-D2 45649035 1/4 " 41 34 300 0.65 187 1/4 NPT 10 1.6 9.40 88.9 5.7 /1.0
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. 1207MAX-D4 45654225 ½ " 88 81 200 1.45 275 1/4 NPT 10 1.9 10.80 85.0 3.2 /1.1
1207MAX-D3 45643276 ⅜ " 88 81 200 1.45 275 1/4 NPT 10 1.9 10.80 85.0 3.2 /1.1
1077XPA 80171853 ½ " 73 61 160 1.25 276 1/4 NPT 10 1.9 8.80 94.4 < 2.5
107XPA 80171705 ⅜ " 73 61 160 1.24 276 1/4 NPT 10 1.9 8.80 94.4 < 2.5
105-D3 45649738 ⅜ " 34 27 220 0.64 186 1/4 NPT 10 1.4 8.50 81.8 5.1 /0.9
105-D2 45649571 1/4 " 34 27 220 0.64 186 1/4 NPT 10 1.4 8.50 81.8 5.1 /0.9
1770 80103799 ½ " 81 81 160 1.17 262 1/4 NPT 10 1.9 10.00 94.8 2.8 /0.7
170 80103781 ⅜ " 81 81 160 1.16 262 1/4 NPT 10 1.9 10.00 94.8 2.8 /0.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
