Page 33 - Vehicle Repair Tools 2019
P. 33

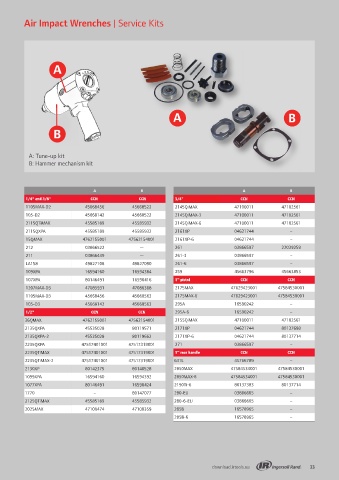

Air Impact Wrenches | Accessories Air Impact Wrenches | Service Kits
Impact Socket Extensions
A
A B
B B
Square Length Recommended Square Length Recommended
drive (mm) retaining ring drive (mm) retaining ring
E24H 1/4" 100 – E63H 3/4" 75 RR10034S A: Tune-up kit
E26H 1/4" 150 – E67H 3/4" 175 RR10034S B: Hammer mechanism kit
E33H 3/8" 75 RR10003 E610H 3/4" 250 RR10034S
E36H 3/8" 150 RR10003 E83H 1" 75 RR10015S
E312H 3/8" 300 RR10003 E87H 1" 175 RR10015S
A B A B
E43H 1/2" 75 RR10006 E810H 1" 250 RR10015S
1/4" and 3/8" CCN CCN 3/4" CCN CCN
E45H 1/2" 125 RR10006 E813H 1" 330 RR10015S
1105MAX-D2 45668456 45668522 2145QiMAX 47100011 47102561
E47H 1/2" 175 RR10006
105-D2 45668142 45668522 2145QiMAX-3 47100011 47102561
E410H 1/2" 250 RR10006
2115QTiMAX 45585189 45585932 2145QiMAX-6 47100011 47102561
E424H 1/2" 600 RR10006
2115QXPA 45585189 45585932 2161XP 04621744 –
15QMAX 4762155001 47562154001 2161XP-6 04621744 –
212 03866522 — 261 03866597 22039259
211 03866449 — 261-3 03866597 –
Universal Joints Adapters
LA158 49827108 49827090 261-6 03866597 –
109XPA 16594160 16594384 259 45663796 45663853
107XPA 80146491 16590416 1" pistol CCN CCN
1207MAX-D3 47085931 47086368 2175MAX 47629423001 47584530001
1105MAX-D3 45668456 45668563 2175MAX-6 47629423001 47584530001
105-D3 45668142 45668563 295A 16590242 –
1/2" CCN CCN 295A-6 16590242 –
Universal Joint
36QMAX 4762155001 47562154001 2155QiMAX 47100011 47102561
2135QXPA 45535028 80119571 2171XP 04621744 80137698
Recommended Recommended
A (mm) B (mm) retaining ring A (mm) B (mm) retaining ring 2135QXPA-2 45535028 80119662 2171XP-6 04621744 80137714
2235QXPA 47517401001 47517319001 271 03866597 –
A2F3M 1/4" 3/8" –
J2 1/4" 1/4" – 2235QTiMAX 47517401001 47517319001 1" rear handle CCN CCN
A3F2M 3/8" 1/4" RR10003
J3 3/8" 3/8" – 2235QTiMAX-2 47517401001 47517319001 631L 45766789 –
A3F4M 3/8" 1/2" RR10003
J4 1/2" 1/2" – 2130XP 80142375 80140528 2850MAX 47584534001 47584530001
A4F3M 1/2" 3/8" RR10006
J6 3/4" 3/4" RR10034S 1099XPA 16594160 16594392 2850MAX-6 47584534001 47584530001
A4F6M 1/2" 3/4" RR10008
J8 1" 1" RR10015S 1077XPA 80146491 16590424 2190Ti-6 80137383 80137714
A6F4M 3/4" 1/2" RR10034S
1770 – 80147077 280-EU 03866605 –
A6F8M 3/4" 1" RR10034S
2125QTiMAX 45585189 45585932 280-6-EU 03866605 –
A8F6M 1" 3/4" RR10015S
2025MAX 47100474 47100359 285B 16578965 –
285B-6 16578965 –
32 download.irtools.eu download.irtools.eu 33
