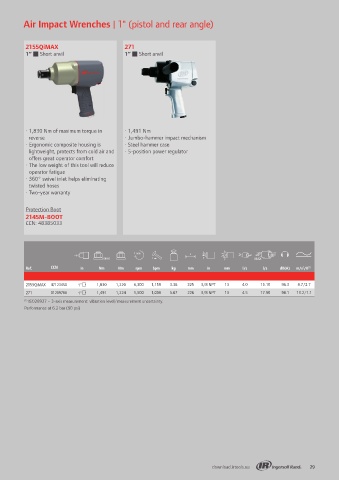

P. 29

Air Impact Wrenches   | 1" (pistol and rear angle)     Air Impact Wrenches   | 1" (pistol and rear angle)



 2175MAX      295A      2171XP      2155QiMAX      271
   1“     Short anvil     1“     Short anvil     1“     Short anvil     1“     Short anvil     1“     Short anvil















   · 2715 Nm of Max Reverse Torque    ·   Designed for operation at 8.3 bar     ·   1,695 Nm    ·   1,830 Nm of maximum torque in     ·   1,491 Nm
   · Twin Hammer mechanism  dynamic (120 psi)    · Only 5.47 kg (2171XP)  reverse    · Jumbo-hammer impact mechanism
   · Built in auto lubrication system    · 2,400 Nm    · Twin-hammer impact mechanism    · Ergonomic composite housing is     · Steel hammer case
   · Ready for exhaust connection    · Swinging-hammer impact mechanism    · Steel hammer case  lightweight, protects from cold air and     · 5-position power regulator
   · 2-Years Warranty    · 3-position power regulator     · 3-position power regulator   off ers great operator comfort
             · The low weight of this tool will reduce
           operator fatigue
     Also available       Also available     · 360° swivel inlet helps eliminating
     2175MAX-6      295A-6       Protection Boot   twisted hoses
     Long anvil 150 mm       Long anvil 150 mm       2161-BOOT     · Two-year warranty
     CCN: 45505401

     Protection Boot       Protection Boot
     295-BOOT      2145M-BOOT
     CCN: 45505484      CCN: 48385033






 L                                                                  L
                   1 min                                    1 min
 2
                                                                                                           2
     Ref.      CCN  in  Nm  Nm  rpm  bpm  kg  mm  in  mm  l/s  l/s  dB(A)  m/s /K (1)      Ref.      CCN  in  Nm  Nm  rpm  bpm  kg  mm  in  mm  l/s  l/s  dB(A)  m/s /K (1)

 2175MAX  2175MAX      1"    2,715  2,170  4,500  740  8.2  254  1/2 NPT  19 mm  6.7  26.8  101.5  11.8/3.6          2155QiMAX    47123450       1"        1,830     1,220     6,300      1,150     3.36     225     3/8 NPT      13      4.0      15.10      96.3      8.7  /2.7
 2175MAX-6  2175MAX-6      1"    2,715  2,170  4,500  740  9.1  406  1/2 NPT  19 mm  6.7  26.8  101.5  11.2/3.4          271       01209766       1"        1,491     1,224     5,500      1,000     5.67     226     3/8 NPT      13      4.5      17.90      98.1      13.2  /1.1
         295A       80159015       1"        2,400     1,220     5,000      700     9.98     290     1/2 NPT      13      4.7      17.50      97.0      8.6  /1.0   (1)  ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
         295A-6       16578734       1"        2,400     1,220     5,000      700     11.40     449     1/2 NPT      13      4.7      17.50      97.0      9.1  /2.9   Performance at 6.2 bar (90 psi)
         2171XP       01378165       1"        1,695     1,356     6,000      1,025     5.47     226     3/8 NPT      13      4.7      21.50      94.7      10.3  /1.3
 (1)  ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
 Performance at 6.2 bar (90 psi)
