Page 26 - Vehicle Repair Tools 2019

Air Impact Wrenches Air Impact Wrenches | 1" (pistol and rear angle)

631L 285B-6 280-6-EU
1“ Long anvil 200 mm 1“ Long anvil 150 mm 1“ Long anvil 150 mm

Musterbild · 4,300 Nm of maximum torque · Designed for operation at 8.3 bar · 2,169 Nm

· Ergonomic auxiliary handle provides
dynamic (120 psi)
· Jumbo-hammer impact mechanism
excellent manoeuvrability
· 2,400 Nm
· Swinging-hammer impact mechanism
· 4-position power regulator and
· forward/reverse control · 3-position power regulator Also available
280-EU
1" Short anvil
Also available
285B
1" Short anvil

L
1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

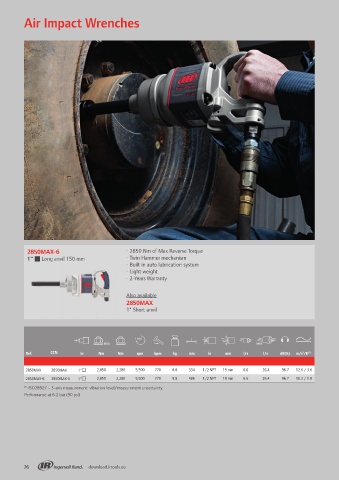

2850MAX-6 · 2850 Nm of Max Reverse Torque 631L 80183171 1" 4,300 3,390 3,500 700 16.60 624 1/2 NPT 13 7.1 26.40 108.4 12.7 /2.5
1“ Long anvil 150 mm · Twin Hammer mechanism 280-6-EU 01343144 1" 2,169 1,356 6,000 750 10.80 470 1/2 NPT 13 4.7 26.00 109.1 21.8 /3.8

· Built in auto lubrication system 280-EU 01343193 1" 2,169 1,356 6,000 750 9.98 330 1/2 NPT 13 4.7 26.00 109.1 24.1 /3.4
· Light weight
· 2-Years Warranty 285B-6 80157233 1" 2,400 1,220 5,000 700 12.60 519 1/2 NPT 13 4.7 17.50 99.8 9.0 /2.7
285B 80157209 1" 2,400 1,220 5,000 700 11.20 360 1/2 NPT 13 4.7 17.50 99.8 8.0 /1.2
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Also available
2850MAX Performance at 6.2 bar (90 psi)
1" Short anvil

L
1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

2850MAX 2850MAX 1" 2,850 2,280 5,500 770 8.8 334 1/2 NPT 19 mm 6.6 26.4 96.7 12.6 / 3.6
2850MAX-6 2850MAX-6 1" 2,850 2,280 5,500 770 9.8 486 1/2 NPT 19 mm 6.6 26.4 96.7 10.3 / 1.9
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Performance at 6.2 bar (90 psi)
