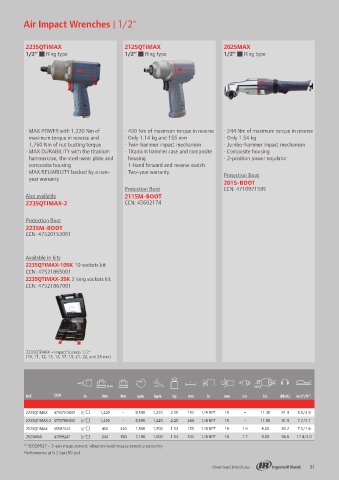

Page 21 - Vehicle Repair Tools 2019

Air Impact Wrenches Air Impact Wrenches | 1/2"

2235QTiMAX 2125QTiMAX 2025MAX
1/2“ Ring type 1/2“ Ring type 1/2“ Ring type

Musterbild · MAX POWER with 1,220 Nm of · 450 Nm of maximum torque in reverse · 244 Nm of maximum torque in reverse

· Only 1.14 kg and 155 mm
maximum torque in reverse and
· Only 1.54 kg
1,760 Nm of nut busting torque
· Twin-hammer impact mechanism
· Jumbo-hammer impact mechanism
· Titanium hammer case and composite
· Composite housing
· MAX DURABILITY with the titanium
· hammercase, the steel-wear plate and · 1-hand forward and reverse switch · 2-position power regulator
housing
composite housing
· MAX RELIABILITY backed by a two-
year warranty · Two-year warranty Protection Boot
2015-BOOT
Protection Boot CCN: 47109715IRI
Also available 2115M-BOOT
2235QTIMAX-2 CCN: 45602174
Protection Boot
2235M-BOOT
CCN: 47520153001

36QMAX · Delivering 640 Nm of maximum
1/2“ Ring type reverse torque and 815 Nm of nut Available in kits
busting torque at only 1.09 kg 2235QTiMAX-10SK 10 sockets kit
· Push for one-hand forward / reverse CCN: 47521865001
· 117 mm length 2235QTiMAX-3SK 3 long sockets kit
· Twin-Hammer mechanism for low CCN: 47521867001
vibrations
· Quiet Tool

Protection Boot
35-BOOT
CCN: 47555720001 2235QTiMAX + Impact Sockets 1/2"
(10, 11, 12, 13, 14, 17, 19, 21, 22, and 24 mm)

L L
1 min 1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1) Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2
2

36QMAX 36QMAX ½ " 640 520 8,000 1,300 1.09 117 1/4 NPT 10 1.9 8.20 91.3 8.1 / 1.2 2235QTiMAX 47517574001 ½ " 1,220 – 8,500 1,220 2.10 193 1/4 NPT 10 – 11.30 91.9 9.0 /2.8
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. 2235QTIMAX-2 47517884001 ½ " 1,220 – 8,500 1,220 2.20 244 1/4 NPT 10 – 11. 00 91.9 7.7 /2.7
Performance at 6.2 bar (90 psi) 2125QTiMAX 45587524 ½ " 450 340 1,500 1,500 1.14 155 1/4 NPT 10 1.9 8.00 93.2 7.5 /1.8
2025MAX 47099247 ½ " 244 190 7,100 1,500 1.54 332 1/4 NPT 10 1.7 9.00 96.6 17.4 /3.0
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Performance at 6.2 bar (90 psi)

20 download.irtools.eu download.irtools.eu 21
