Page 16 - Vehicle Repair Tools 2019

Air Impact Wrenches Air Impact Wrenches | 1/4" and 3/8"

2115QTiMAX 15QMAX 2015MAX
3/8“ Ring type 3/8“ Ring type 3/8“ Ring type

Musterbild · 407 Nm of maximum torque in reverse · Delivering 520 Nm of maximum · 244 Nm of maximum torque in reverse

· Only 1.13 kg and 151 mm
reverse torque at only 1.09 kg
· Only 1.54 kg
· Push buttons for one-hand forward/
· Twin-hammer impact mechanism
· Jumbo-hammer impact mechanism
reverse
· Composite housing
· Titanium hammer case and composite
· · 4-position power regulator · 3-mode selection power regulator · 2-position power regulator
housing
· 117 mm length
· 1-hand forward and reverse switch
· Two-year warranty
· Two-year warranty · Quiet Tool Protection Boot
2015-BOOT
CCN: 47109715IRI
Protection Boot Protection Boot
2115M-BOOT 35-BOOT
CCN: 45602174 CCN: 47555720001

L
1 min

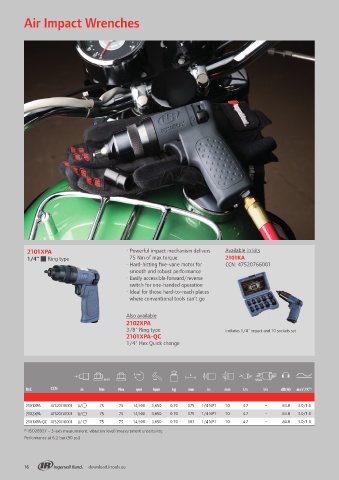

2101XPA · Powerful impact mechanism delivers Available in kits Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2
1/4“ Ring type 75 Nm of max torque 2101KA
· Hard-hitting fi ve-vane motor for CCN: 47520766001
smooth and robust performance 2115QTiMAX 45587326 ⅜ " 407 312 1,500 1,500 1.13 151 1/4 NPT 10 1.9 8.00 93.2 7.5 /1.8
· Easily accessible forward/reverse 15QMAX 47544405001 ⅜ " 520 420 6,000 1,350 1.09 117 1/4 NPT 10 1.9 8.02 89.7 5.5 /0.9
switch for one-handed operation 2015MAX 45533775 ⅜ " 244 190 7,100 2,100 1.54 332 1/4 NPT 10 1.6 9.00 96.6 17.4 /3.0
· Ideal for those hard-to-reach places (1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
where conventional tools can’t go Performance at 6.2 bar (90 psi)

Also available
2102XPA
3/8" Ring type Includes 1/4" impact and 10 sockets set
2101XPA-QC
1/4" Hex Quick change

L
1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

2101XPA 47520745001 1/4 " 75 75 14,500 3,650 0.70 175 1/4 NPT 10 4.7 – 84.8 3.0 /1.0
2102XPA 47520747001 ⅜ " 75 75 14,500 3,650 0.70 175 1/4 NPT 10 4.7 – 84.8 3.0 /1.0
2101XPA-QC 47520746001 1/4 " 75 75 14,500 3,650 0.70 183 1/4 NPT 10 4.7 – 84.8 3.0 /1.0
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Performance at 6.2 bar (90 psi)

16 download.irtools.eu download.irtools.eu 17
