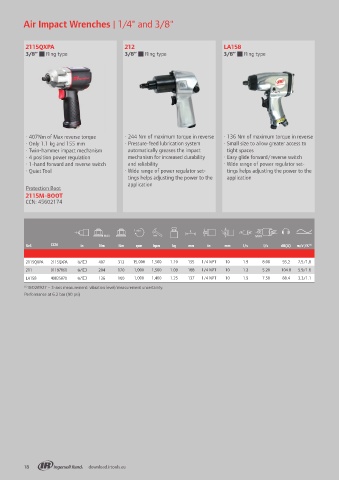

Page 18 - Vehicle Repair Tools 2019

Air Impact Wrenches | 1/4" and 3/8" Air Impact Wrenches | 1/4" and 3/8"

2115QXPA 212 LA158 211 216B
3/8“ Ring type 3/8“ Ring type 3/8“ Ring type 3/8“ Ring type 3/8“ Ring type

· 407Nm of Max reverse torque · 244 Nm of maximum torque in reverse · 136 Nm of maximum torque in reverse · 204 Nm of maximum torque in reverse · 271 Nm of maximum torque in reverse
· Only 1.1 kg and 155 mm · Pressure-feed lubrication system · Small size to allow greater access to · Only 1.09 kg · Only 1.27 kg
· Twin-hammer impact mechanism automatically greases the impact tight spaces · Jumbo-hammer impact mechanism · Ball & cam impact mechanism
· 4 position power regulation mechanism for increased durability · Easy glide forward/reverse switch · 5-position power regulator · Power regulator
· 1-hand forward and reverse switch and reliability · Wide range of power regulator set-
· Quiet Tool · Wide range of power regulator set- tings helps adjusting the power to the
tings helps adjusting the power to the application
application
Protection Boot
2115M-BOOT
CCN: 45602174

L L
1 min 1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1) Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2
2

2115QXPA 2115QXPA ⅜ " 407 312 15,000 1,500 1.10 155 1/4 NPT 10 1.9 8.00 93,2 7,5/1,8 212 01197003 ⅜ " 244 170 1,000 1,500 1.31 152 1/4 NPT 10 1.2 5.20 97.5 6.5 /1.0
211 01197060 ⅜ " 204 170 1,000 1,500 1.09 168 1/4 NPT 10 1.2 5.20 104.0 5.9 /1.6 216B 46806600 ⅜ " 271 217 8,500 1,600 1.27 196 1/4 NPT 10 1.4 9.00 90.0 5.2 /1.0
LA158 49825870 ⅜ " 136 100 1,000 1,400 1.25 137 1/4 NPT 10 1.9 7.50 88.4 3.3 /1.1 (1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. Performance at 6.2 bar (90 psi)
Performance at 6.2 bar (90 psi)
