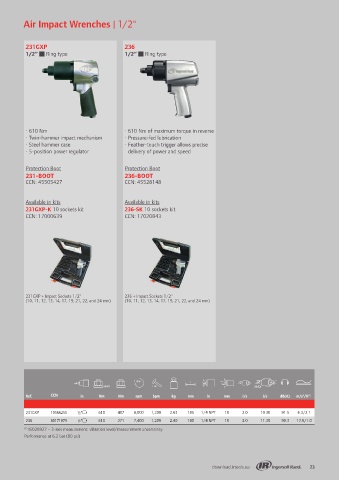

Page 23 - Vehicle Repair Tools 2019

Air Impact Wrenches | 1/2" Air Impact Wrenches | 1/2"

2235QXPA 2135QXPA 2130XP 231GXP 236
1/2“ Ring type 1/2“ Ring type 1/2“ Ring type 1/2“ Ring type 1/2“ Ring type

· 1,220 Nm of maximum torque in · 1,057 Nm of maximum torque in · 816 Nm maximum torque in reverse · 610 Nm · 610 Nm of maximum torque in reverse
reverse and 1,760 Nm of nut-busting reverse and 1,490 Nm of nut busting · Ergonomic composite housing is light- · Twin-hammer impact mechanism · Pressure-fed lubrication
torque torque weight, protects from cold air, and · Steel hammer case · Feather-touch trigger allows precise
· Quiet technology · Quiet technology off ers great operator comfort · 5-position power regulator delivery of power and speed
· Only 2,1 kg · Only 1.80 kg · Full-stroke tease throttle
· 4-position power regulator and · Multi-position power management Protection Boot Protection Boot
1-hand forward and reverse switch and easy glide forward/reverse switch
Protection Boot 231-BOOT 236-BOOT
2235M-BOOT Also available CCN: 45505427 CCN: 45528148
CCN: 47520153001 2135QXPA-2 Protection Boot
Ring type, long anvil 50 mm 2130-BOOT
CCN: 45505369 Available in kits Available in kits
2135QTL-2 231GXP-K 10 sockets kit 236-SK 10 sockets kit
1/2'' Extended / Torque limited CCN: 17000639 CCN: 17020843
75-100 Nm Available in kits

Protection Boot 2130XP+SK4M3L 3 long sockets kit
2135M-BOOT CCN: 17021346
CCN: 45545977 2130XP-K 10 sockets kit
CCN: 16985301
Available in kits

2135QXPA-10SK 10 sockets kit
CCN: 47521891001
2135QXPA-3SK 3 long sockets kit
CCN: 47521896001
231GXP + Impact Sockets 1/2" 236 + Impact Sockets 1/2"
(10, 11, 12, 13, 14, 17, 19, 21, 22, and 24 mm) (10, 11, 12, 13, 14, 17, 19, 21, 22, and 24 mm)

2130XP + Long Impact Sockets, insulated, thin-
wall 1/2" (17, 19, and 21 mm)

2135QXPA + Impact Sockets 1/2"
(10, 11, 12, 13, 14, 17, 19, 21, 22, and 24 mm)

L L
1 min 1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1) Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2
2

2235QXPA 47532836001 ½ " 1,220 – 8,500 1,220 2.10 193 1/4 NPT 10 0.0 11.30 91.9 9.0 /2.8 231GXP 10566255 ½ " 610 407 8,000 1,200 2.63 185 1/4 NPT 10 2.0 10.30 91.5 6.3 /2.1
2135QXPA 47517913001 ½ " 1,057 746 9,800 1,250 1.80 187 1/4 NPT 10 0.0 10.80 90.7 13.3 /4.6 236 80171879 ½ " 610 271 7,400 1,200 2.40 180 1/4 NPT 10 2.0 11.30 90.3 12.0 /1.0
2135QXPA-2 47517914001 ½ " 1,057 746 9,800 1,250 1.90 241 1/4 NPT 10 0.0 10.80 90.7 9.7 /1.8 (1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
2135QTL-2 2135QTL-2 ½ " 1,057 75-100 11,000 1,250 2.00 242 1/4 NPT 10 2.3 11.30 95.4 13,8 / 4,8 Performance at 6.2 bar (90 psi)
2130XP 80136112 ½ " 816 474 9,500 1,200 1.90 187 1/4 NPT 10 2.1 10.40 94.3 8.9 /2.0
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Performance at 6.2 bar (90 psi)
