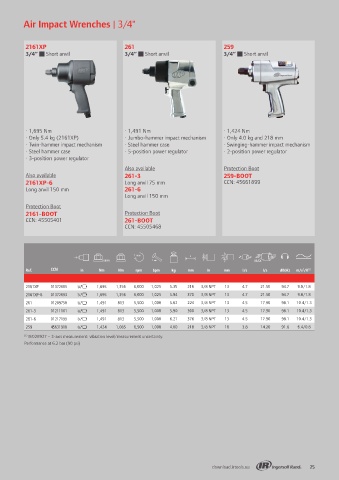

Page 25 - Vehicle Repair Tools 2019

Air Impact Wrenches Air Impact Wrenches | 3/4"

2161XP 261 259
3/4“ Short anvil 3/4“ Short anvil 3/4“ Short anvil

Musterbild · 1,695 Nm · 1,491 Nm · 1,424 Nm

· Jumbo-hammer impact mechanism
· Only 5.4 kg (2161XP)
· Only 4.0 kg and 218 mm
· Steel hammer case
· Swinging-hammer impact mechanism
· Twin-hammer impact mechanism
· Steel hammer case
· 2-position power regulator
· 5-position power regulator
· · 3-position power regulator Also available Protection Boot
Also available
CCN: 45661899
2161XP-6 261-3 259-BOOT
Long anvil 75 mm
Long anvil 150 mm 261-6
Long anvil 150 mm
Protection Boot
2161-BOOT Protection Boot
CCN: 45505401 261-BOOT
CCN: 45505468

2145QiMAX · 1,830 Nm of maximum torque in
3/4“ Short anvil reverse 1 min L
· Ergonomic composite housing is
lightweight, protects from cold air and Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2
off ers great operator comfort
· The low weight of this tool will reduce 2161XP 01372085 ¾ " 1,695 1,356 6,000 1,025 5.35 216 3/8 NPT 13 4.7 21.50 94.7 9.8 /1.8
operator fatigue
· 360° swivel inlet helps eliminate 2161XP-6 01372093 ¾ " 1,695 1,356 6,000 1,025 5.94 370 3/8 NPT 13 4.7 21.50 94.7 9.8 /1.8
twisted hoses 261 01209758 ¾ " 1,491 813 5,500 1,000 5.62 224 3/8 NPT 13 4.5 17.90 98.1 10.4 /1.3
· Two-year warranty 261-3 0 1211101 ¾ " 1,491 813 5,500 1,000 5.90 300 3/8 NPT 13 4.5 17.90 98.1 10.4 /1.3
261-6 01217199 ¾ " 1,491 813 5,500 1,000 6.21 376 3/8 NPT 13 4.5 17.90 98.1 10.4 /1.3
Also available 259 45631918 ¾ " 1,424 1,085 6,500 1,000 4.00 218 3/8 NPT 10 3.8 14.20 91.6 6.4 /0.8
Protection Boot 2145QiMAX-3 (1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
2145M-BOOT Long anvil 75 mm Performance at 6.2 bar (90 psi)
CCN: 48385033 2145QiMAX-6
Long anvil 150 mm

L
1 min

Ref. CCN in Nm Nm rpm bpm kg mm in mm l/s l/s dB(A) m/s /K (1)
2

2145QiMAX 45624327 ¾ " 1,830 1,220 6,300 1,150 3.35 217 3/8 NPT 13 4.0 15.10 96.3 8.7 /2.7
2145QiMAX-3 47119524 ¾ " 1,830 1,220 6,300 1,150 3.79 293 3/8 NPT 13 4.0 15.10 96.3 8.1 /1.2
2145QiMAX-6 47121454 ¾ " 1,830 1,220 6,300 1,150 4.23 369 3/8 NPT 13 4.0 15.10 96.3 8.1 /1.2

(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Performance at 6.2 bar (90 psi)

24 download.irtools.eu download.irtools.eu 25
