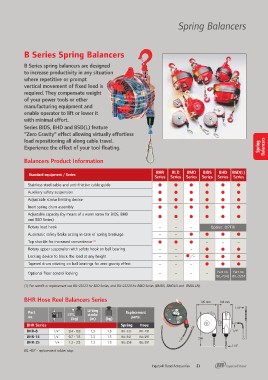

Page 21 - Accessories Airline & Tool Accessories

Spring Balancers

B Series Spring Balancers Spring
Balancers
B Series spring balancers are designed
to increase productivity in any situation
where repetitive or prompt
vertical movement of fixed load is
required. They compensate weight
of your power tools or other
manufacturing equipment and
enable operator to lift or lower it
with minimal effort.

Series BIDS, BHD and BSD(L) feature
"Zero Gravity" effect allowing virtually effortless
load repositioning all along cable travel.
Experience the effect of your tool floating.

Balancers Product Information

Standard equipment / Series BHR BLD BMD BIDS BHD BSD(L)
Series Series Series Series Series Series
Stainless steel cable and anti-friction cable guide
Auxiliary safety suspension • •• • • •
Adjustable stroke limiting device • •• • • •
Inert spring drum assembly • •• • • •
Adjustable capacity (by means of a worm screw for BIDS, BHD • •• • • •
and BSD Series)
Rotary load hook • •• • • •
Automatic safety brake acting in case of spring breakage
Top shackle for increased convenience (1) – –– Option: OPTRI
Rotary upper suspension with safety hook on ball bearing
Locking device to block the load at any height – –••••
Tapered drum rotating on ball bearings for zero gravity effect
••• – – –
Optional floor control locking
– – – •••

– – –• • •

– – – •••

– – – – Part no. Part no.
BIL-7343 BIL-3224

(1) For retrofit or replacement use BIL-23223 for BSLDWSLeries, and BIL-23224 for BMD Series (BMDS, BMDLN and BMDLLN).

BHR Hose Reel Balancers Series 145 mm 104 mm

SWL 1/4”

Part SWL Lifting (kg) Replacement
no. (kg) stroke parts:

(m)

BHR Series Spring Hose

BHR-8 1/4" 0.4 - 0.8 1.3 1.5 BIL-333 BIL-291 1/4”
BHR-15 1/4" 0.7 - 1.5 1.3 1.5 BIL-341 BIL-291 298
BHR-25 1/4 1.2 - 2.5 1.3 1.5 BIL-358 BIL-291
1/4”

BIL-457 - replacement rubber stop.
