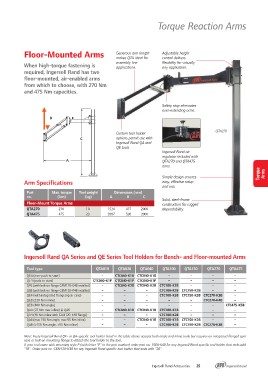

Page 25 - Accessories Airline & Tool Accessories

Torque Reaction Arms

Floor-Mounted Arms Generous arm length Adjustable height
makes QTA ideal for control delivers
When high-torque fastening is assembly line flexibility for virtually
required, Ingersoll Rand has two applications. any application.
floor-mounted, air-enabled arms
from which to choose, with 270 Nm
and 475 Nm capacities.

Safety stop eliminates
over-extending arms.

B B QTA270
C
Custom tool holder
options permit use with Ingersoll Rand air
IngCersoll Rand QA and regulator included with
QE tools. QTA270 and QTA475
arms.
A

A

Arm Specifications Simple design ensures Torque
easy, effective setup Arms
and use.
Part Max. torque Tool weight Dimensions (mm)
no. (Nm) (kg) A BC Solid, steel-frame
construction for rugged
Floor-Mount Torque Arms 10 dependability
23
QTA270 270 1524 477 2000
QTA475 475 2007 590 2000

Ingersoll Rand QA Series and QE Series Tool Holders for Bench- and Floor-mounted Arms

Tool type QTA010 QTA020 QTA040 QTA100 QTA150 QTA270 QTA475

QE4 (non-push to start) – CTC040-K1B CTC040-K1B – – – –
QE4 (push to start) CTC040-K1P CTC040-K1P CTC040-K1P – – – –
QE6 (with bolt-on flange GEM120-K48 installed) CTC040-K2B CTC040-K2B CTC100-K2B – – –
QE8 (with bolt-on flange GEM120-K48 installed) – CTC100-K2B CTC150-K2B – –
QE8 (with integrated flanged gear case) – – – CTC100-K3B CTC150-K3B CTC270-K3B –
QE8 (230 Nm inline) – – – – – CTC270-K4B –
QE8 (400 Nm angle) – – – – – – CTC475-K5B
QA4 (27 Nm max inline) & QA6 – – – CTC100-K1B – – –
QA4 (46 Nm inline with GEM120-K48 flange) – CTC040-K1B CTC040-K1B CTC100-K2B – – –
QA8 (max 150 Nm angle, max 55 Nm inline) – – – CTC100-K1B CTC150-K2B – –
QA8 (>150 Nm angle, >55 Nm inline) – – CTC040-K1B CTC100-K2B CTC150-K3B CTC270-K3B –
– – –

Note: Every Ingersoll Rand QE- or QA-specific tool holder listed in the table above accepts both angle and inline tools but requires an integrated flanged gear
case or bolt-on mounting flange to attach the tool holder to the tool.
If your tool came with mounting style P (with letter "P" in the part number) order part no. 15E4-K48 for any Ingersoll Rand specific tool holder that ends with
"1B". Order part no. GEM120-K48 for any Ingersoll Rand specific tool holder that ends with "2B".

Ingersoll Rand Accessories 25
