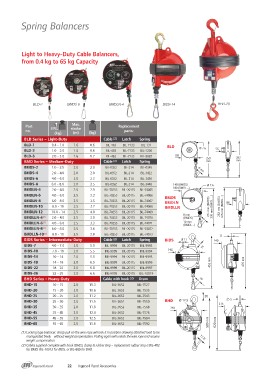

Page 22 - Accessories Airline & Tool Accessories
P. 22
Spring Balancers
Light to Heavy-Duty Cable Balancers,
from 0.4 kg to 65 kg Capacity
BLD-2 SWL BMDLN-4 BIDS-14 BHD-20
BMDS-6
Part SWL Max. (kg) Replacement
no. (kg) stroke parts:
(m)
BLD Series – Light-Duty Cable (2) Latch Spring
BLD-1 0.4 - 1.0 1.6 0.6 BIL-463 BIL-7133 BIL-131 BLD
BLD-2 1.0 - 2.0 1.6 0.6 BIL-463 BIL-7133 BIL-1206 109 Ø 7.6 56
BLD-3 2.0 - 3.0 1.6 0.7 BIL-463 BIL-7133 BIL-9887 259 263
mm mm
BMD Series – Medium-Duty Cable (2) Latch Spring
6 mm
BMDS-2 1.0 - 2.5 2.0 2.0 BIL-0352 BIL-214 BIL-0345
BMDS-4 2.0 - 4.0 2.0 2.0 BIL-0352 BIL-214 BIL-3422
BMDS-6 4.0 - 6.0 2.0 2.3 BIL-0352 BIL-214 BIL-3430
BMDS-8 6.0 - 8.0 2.0 2.5 BIL-0352 BIL-214 BIL-3448 148 (BMDS) Ø 7.6
180 (BMDL...) 86
BMDLN-4 2.0 - 4.0 2.5 2.9 BIL-70253 BIL-20115 BIL-74065
BMDS 11
BMDLN-6 4.0 - 6.0 2.5 3.2 BIL-70253 BIL-20115 BIL-74066 BMDLN 274 mm (BMDS) 140
BMDLLN 330 mm (BMDL ...)
BMDLN-8 6.0 - 8.0 2.5 3.5 BIL-70253 BIL-20115 BIL-74067
8 mm 282 mm (BMDS)
BMDLN-10 8.0 - 10 2.5 3.7 BIL-70253 BIL-20115 BIL-74068 (BMDS) 345 mm (BMDL...)
10 mm
BMDLN-12 10.0 - 14 2.5 4.0 BIL-70253 BIL-20115 BIL-74069 (BMDL...)
BMDLLN-4 (1) 2.0 - 4.0 2.5 3.0 BIL-70253 BIL-20115 BIL-74070 BIDS Ø 11
BMDLLN-6 (1) 4.0 - 6.0 2.5 3.3 BIL-70253 BIL-20115 BIL-74071 196
BMDLLN-8 (1) 6.0 - 8.0 2.5 3.6 BIL-70253 BIL-20115 BIL-74072
BMDLLN-10 (1) 8.0 - 10 2.5 3.8 BIL-70253 BIL-20115 BIL-74073
BIDS Series – Intermediate-Duty Cable (2) Latch Spring
BIDS-7 4.0 - 7.0 2.0 5.0 BIL-9999 BIL-20115 BIL-9993 18
452 mm
BIDS-10 7.0 - 10 2.0 5.5 BIL-9999 BIL-20115 BIL-9994 476 mm
BIDS-14 10 - 14 2.0 5.5 BIL-9999 BIL-20115 BIL-9995
BIDS-18 14 - 18 2.0 6.5 BIL-9999 BIL-20115 BIL-9996
BIDS-22 18 - 22 2.0 6.0 BIL-9999 BIL-20115 BIL-9997
BIDS-26 22 - 25 2.0 6.6 BIL-9999 BIL-20115 BIL-10019
BHD Series – Heavy-Duty Cable with hook (2) Drum 10
BHD-15 10 - 15 2.0 10.3 BIL-3652 BIL-7527
BHD-20 15 - 20 2.0 10.6 BIL-3652 BIL-7535
BHD-25 20 - 25 2.0 11.2 BIL-3652 BIL-7543 20
25.5
BHD-30 25 - 30 2.0 11.5 BIL-3652 BIL-7550 BHD Ø 12.5
215
240
BHD-35 30 - 35 2.0 11.8 BIL-3652 BIL-7568
BHD-45 35 - 45 2.0 12.4 BIL-3652 BIL-7576
BHD-55 45 - 55 2.0 12.5 BIL-3652 BIL-7584 580 mm
620 mm
BHD-65 55 - 65 2.0 13.6 BIL-3652 BIL-7592
(1) Locking type balancer: sharp pull on the wire rope will lock it in position allowing attached load to be 17.8
manipulated freely – without weight compensation. Pulling again will unlock the wire rope and resume
weight compensation.
(2) Cables supplied complete with hook (BHD), clamp & rubber stop – replacement rubber stop is BIL-402
for BMD, BIL-10012 for BIDS, or BIL-669 for BHD.
22 Ingersoll Rand Accessories
