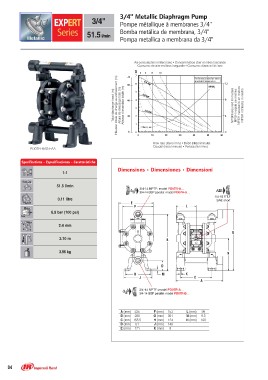

Page 34 - Air-powered pumps 180

3/4" 3/4" Metallic Diaphragm Pump
51.5 l/min Pompe métallique à membranes 3/4"
Bomba metálica de membrana, 3/4"
Pompa metallica a membrana da 3/4"

Air consumption in liters / sec • Consommation d’air en litres / seconde
Consumo de aire en litros / segundo • Consumo d’aria in litri / sec

46 8 10
70 7
Total discharge head (m)
Hauteur totale de charge au refoulement (m)60 6 12
5
Altura de descarga total (m) r
Altezza di mandata totale (m)
NPSH required in meters40 48

NPSH requis en mètres3
NPSH necesario en metros
20 2 4
NPSH richiesta in metri)
1
2 liters / sec.

00 0
0 10 20 30 40 50 60

PD07R-BAS-FAA Flow rate (liters / min.) • Débit (litres / minute)
Caudal (litros / minuto) • Portata (litri / min.)
Specifications – Especificaciones – Caratteristiche
1:1 Dimensions • Dimensiones • Dimensioni

51.5 l/min 3/4-14 NPTF: model PD07R-A… 1/4-18 P.T.F
0.11 litre 3/4-14 BSP parallel: model PD07R-B… SAE short
6.9 bar (100 psi)
E
bar FL

2.4 mm B G
2.10 m N
3.96 kg

D K
HM C
A
J

3/4-14 NPTF: model PD07R-A…
3/4-14 BSP parallel: model PD07R-B…

A (mm) 235 F (mm) 153 L (mm) 99
B (mm) 280 G (mm) 301 M (mm) 9.5
C (mm) 155.5 H (mm) 124 N (mm) 160
D (mm) 51 J (mm) 140
E (mm) 171 K (mm)
8

34
