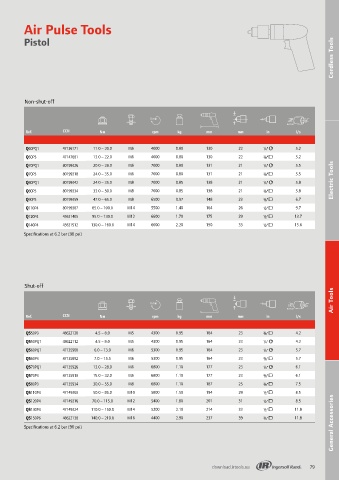

Air Pulse Tools

Pistol
Cordless Tools Cordless Tools

Non-shut-off

Ref. CCN Nm rpm kg mm mm in l/s

Q60PQ1 47136171 11.0 – 20.0 M6 4000 0.80 130 22 1/4" 5.2
Q60P3 47147681 13.0 – 22.0 M6 4000 0.80 130 22 3/8" 5.2
Q70PQ1 80199326 20.0 – 28.0 M6 7000 0.80 131 21 1/4" 5.5
Q70P3 80199318 24.0 – 35.0 M6 7000 0.80 131 21 3/8" 5.5
Q80PQ1 80199342 24.0 – 35.0 M8 7000 0.85 138 21 1/4" 5.8 Electric Tools Electric Tools
Q80P3 80199334 33.0 – 50.0 M8 7000 0.85 138 21 3/8" 5.8
Q90P3 80199359 47.0 – 65.0 M8 6500 0.97 148 23 3/8" 6.7
Q110P4 80199367 65.0 – 100.0 M14 5500 1.40 164 26 1/2" 9.7
Q120P4 45631405 95.0 – 130.0 M12 6600 1.70 175 29 1/2" 13.7
Q140P4 45631512 130.0 – 160.0 M14 6000 2.20 190 33 1/2" 15.6
Specifications at 6.2 bar (90 psi)

Shut-off
Air Tools

Ref. CCN Nm rpm kg mm mm in l/s

QS50P3 48622120 4.5 – 8.0 M5 4300 0.95 164 23 3/8" 4.2
QS50PQ1 48622112 4.5 – 8.0 M5 4300 0.95 164 23 1/4" 4.2
QS60PQ1 47135900 6.0 – 13.0 M6 5300 0.95 164 23 1/4" 5.7
QS60P3 47135892 7.0 – 15.5 M6 5300 0.95 164 23 3/8" 5.7
QS70PQ1 47135926 13.0 – 28.0 M6 6800 1.10 177 23 1/4" 6.1
QS70P3 47135918 15.0 – 32.0 M6 6800 1.10 177 23 3/8" 6.1
QS80P3 47135934 30.0 – 55.0 M8 6800 1.10 187 25 3/8" 7.5
QS110P4 47149208 50.0 – 85.0 M10 5800 1.50 194 29 1/2" 8.5
General Accessories General Accessories
QS120P4 47149216 70.0 – 115.0 M12 5400 1.80 201 31 1/2" 8.5
QS140P4 47149224 110.0 – 150.0 M14 5200 2.10 214 33 1/2" 11.8
QS150P6 48622138 140.0 – 210.0 M16 4400 2.90 237 39 3/4" 11.8
Specifications at 6.2 bar (90 psi)
