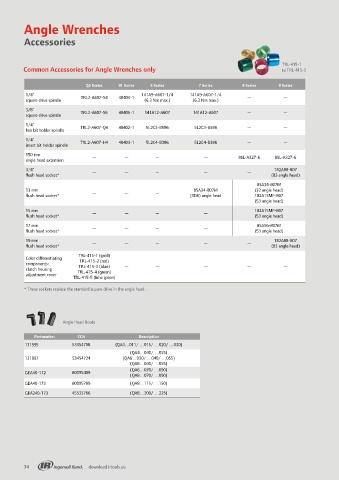

Angle Wrenches

Accessories

TRL-415-1
Common Accessories for Angle Wrenches only to TRL-415-5

Q2 Series 41 Series 5 Series 7 Series 8 Series 9 Series
1/4" TRL2-A607-S4 48404-1 141A9-A607-1/4 141A9-A607-1/4 — —
square drive spindle (6.3 Nm max.) (6.3 Nm max.)

3/8"
square drive spindle TRL2-A607-S6 48405-1 141A12-A607 141A12-A607 — —
1/4" TRL2-A607-Q4 48402-1 5L2C3-B586 5L2C3-B586 — —
hex bit holder spindle
1/4" TRL2-A607-H4 48403-1 5L2C4-B386 5L2C4-B386 — —
insert bit holder spindle
150 mm — — — — 8SL-A327-6 8SL-A327-6
angle head extension

3/4" — — — — — 182A88-807
flush head socket* (83 angle head)
8SA34-807M
13 mm 8SA34-807M (32 angle head)
flush head socket* — — — (3D6) angle head 182A13MF-807
(53 angle head)
15 mm — — — — 182A15MF-807
flush head socket* (53 angle head)
17 mm — — — — 8SA56-807M
flush head socket* (53 angle head)
19 mm — — — — — 182A88-807
flush head socket* (83 angle head)
TRL-415-1 (gold)
Color differentiating TRL-415-2 (red)
components:
TRL-415-3 (blue)

clutch housing TRL-415-4 (green) — — — — —
adjustment cover
TRL-415-5 (lime green)
* These sockets replace the standard square drive in the angle head.

Angle Head Boots

Partnumber CCN Description
131995 53454708 {QA4…011/ …015/ …020/ …030}
{QA4…040/ …055}
131997 53454724 {QA6…030/ …040/ …055}
{QA8…040/ …055}
{QA6…070/ …090}
GEA40-172 80095409
{QA8…070/ …090}
GEA40-173 80095789 {QA8…115/ …150}
GEA240-173 45533766 {QA8…200/ …225}
