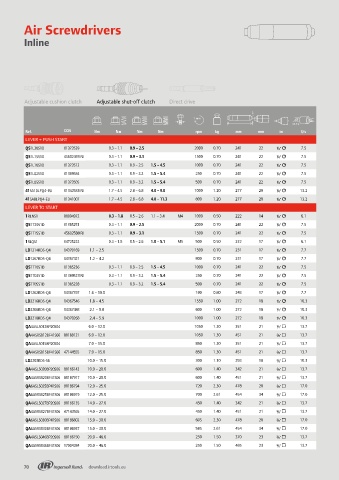

Air Screwdrivers

Inline

Adjustable cushion clutch Adjustable shut-off clutch Direct drive Positive jaw clutch

Ref. CCN Nm Nm Nm Nm rpm kg mm mm in l/s
LEVER + PUSH START
QS1L20S1D 01373539 0.3 – 1.1 0.9 – 2.5 2000 0.70 241 22 1/4" 7.5
QS1L15S1D 45602497IRI 0.3 – 1.1 0.9 – 3.1 1500 0.70 241 22 1/4" 7.5
QS1L10S1D 01373513 0.3 – 1.1 0.9 – 2.5 1.5 – 4.5 1000 0.70 241 22 1/4" 7.5
QS1L02S1D 01389584 0.3 – 1.1 0.9 – 3.2 1.5 – 5.4 250 0.70 241 22 1/4" 7.5
QS1L05S1D 01373505 0.3 – 1.1 0.9 – 3.2 1.5 – 5.4 500 0.70 241 22 1/4" 7.5
41SA10LPQ4-EU 01342583IRI 1.7 – 4.5 2.8 – 6.8 4.0 – 9.0 1000 1.20 277 20 1/4" 13.2
41SA8LPQ4-EU 01341007 1.7 – 4.5 2.8 – 6.8 4.0 – 11.3 800 1.20 277 20 1/4" 13.2
LEVER TO START
1RLNS1 80094972 0.3 – 1.8 0.5 – 2.6 1.1 – 3.4 M4 1000 0.50 222 14 1/4" 6.1
QS1T20S1D 01385251 0.3 – 1.1 0.9 – 2.5 2000 0.70 241 22 1/4" 7.5
QS1T15S1D 45602588IRI 0.3 – 1.1 0.9 – 3.1 1500 0.70 241 22 1/4" 7.5
1RLQS1 04725222 0.3 – 1.8 0.5 – 2.6 1.0 – 5.1 M5 500 0.50 222 17 1/4" 6.1
LD1214RD5-Q4 04370169 1.1 – 2.5 1500 0.70 231 17 1/4" 7.7
LD1207RD5-Q4 04367421 1.2 – 4.2 800 0.70 231 17 1/4" 7.7
QS1T10S1D 01385236 0.3 – 1.1 0.9 – 2.5 1.5 – 4.5 1000 0.70 241 22 1/4" 7.5
QS1T02S1D 01389527IRI 0.3 – 1.1 0.9 – 3.2 1.5 – 5.4 250 0.70 241 22 1/4" 7.5
QS1T05S1D 01385228 0.3 – 1.1 0.9 – 3.2 1.5 – 5.4 500 0.70 241 22 1/4" 7.5
LD1202RD5-Q4 04367397 1.6 – 10.0 180 0.80 243 17 1/4" 7.7
LD2216RD5-Q4 04367546 1.8 – 4.5 1550 1.00 272 18 1/4" 10.3
LD2206RD5-Q4 04367488 2.1 – 9.8 600 1.00 272 18 1/4" 10.3
LD2210RD5-Q4 04370268 2.4 – 5.9 1000 1.00 272 18 1/4" 10.3
QA4ASLS012BP20S04 6.0 – 12.0 1050 1.30 351 21 1/4" 13.7
QA4ASRS012BF41S06 80188121 6.0 – 12.0 1050 1.30 451 21 3/8" 13.7
QA4ASLS015BP20S04 7.0 – 15.0 850 1.30 351 21 1/4" 13.7
QA4ASRS015BF41S06 47144555 7.0 – 15.0 850 1.30 451 21 3/8" 13.7
LD2203RD5-S6 10.0 – 15.0 300 1.10 293 18 3/8" 10.3
QA4ASLS020BP20S06 80166143 10.0 – 20.0 600 1.40 342 21 3/8" 13.7
QA4ASRS020BF41S06 80187917 10.0 – 20.0 600 1.40 451 21 3/8" 13.7
QA6ASLS025BP41S06 80186794 12.0 – 25.0 720 2.30 478 20 3/8" 17.0
QA6ASRS025BF41S06 80186919 12.0 – 25.0 700 2.61 454 34 3/8" 17.0
QA4ASLS027BP20S06 80166135 14.0 – 27.0 450 1.40 342 21 3/8" 13.7
QA4ASRS027BF41S06 47143565 14.0 – 27.0 450 1.40 451 21 3/8" 13.7
QA6ASLS030BP41S06 80186802 15.0 – 30.0 605 2.30 478 20 3/8" 17.0
QA6ASRS030BF41S06 80186927 15.0 – 30.0 585 2.61 454 34 3/8" 17.0
QA4ASLS046BP20S06 80166150 20.0 – 46.0 250 1.50 370 23 3/8" 13.7
QA4ASRS046BF41S06 17004284 20.0 – 46.0 250 1.50 465 23 3/8" 13.7
