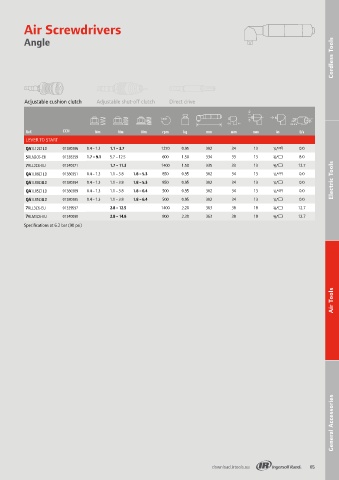

Page 65 - Assembly_Solutions

Air Screwdrivers

Angle
Cordless Tools Cordless Tools

Adjustable cushion clutch Adjustable shut-off clutch Direct drive Positive jaw clutch

Ref. CCN Nm Nm Nm rpm kg mm mm mm in l/s
LEVER TO START
QA1L12C1LD 01380286 0.4 – 1.3 1.1 – 3.7 1270 0.95 302 34 13 1/4" 0.0
5RLN2C6-EU 01338359 1.7 – 9.1 5.7 – 12.5 600 1.50 334 33 13 3/8" 8.0
7RLL2C6-EU 01340371 1.7 – 11.3 1400 1.50 335 33 13 3/8" 12.7
QA1L08C1LD 01380351 0.4 – 1.3 1.1 – 3.8 1.8 – 5.3 850 0.95 302 34 13 1/4" 0.0
QA1L08C4LD 01380294 0.4 – 1.3 1.1 – 3.8 1.8 – 5.3 850 0.95 302 34 13 1/4" 0.0 Electric Tools Electric Tools
QA1L05C1LD 01380369 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 500 0.95 302 34 13 1/4" 0.0
QA1L05C4LD 01380385 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 500 0.95 302 34 13 1/4" 0.0
7RLL3C6-EU 01339597 2.8 – 12.5 1400 2.20 363 38 18 3/8" 12.7
7RLM3C6-EU 01340090 2.8 – 14.8 800 2.30 363 38 18 3/8" 12.7
Specifications at 6.2 bar (90 psi)
