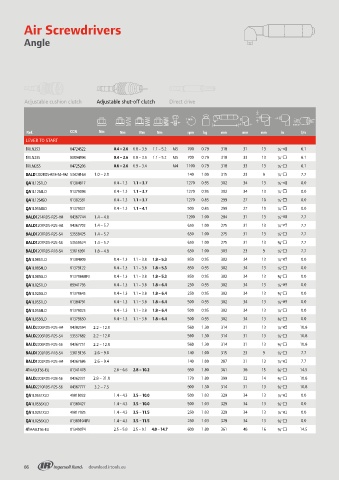

Air Screwdrivers

Angle

Adjustable cushion clutch Adjustable shut-off clutch Direct drive Positive jaw clutch

Ref. CCN Nm Nm Nm Nm rpm kg mm mm mm in l/s
LEVER TO START
1RLN2S3 04724522 0.4 – 2.6 0.8 – 3.9 1.1 – 5.2 M5 700 0.79 318 31 13 1/4" 6.1
1RLN2S5 80094998 0.4 – 2.6 0.8 – 3.9 1.1 – 5.2 M5 700 0.79 318 33 13 1/4" 6.1
1RLM2S5 04725206 0.6 – 2.6 0.9 – 3.4 M4 1100 0.79 318 33 13 1/4" 6.1
BALD1202RD5-R18-S4-RM 53424164 1.0 – 2.0 140 1.00 315 23 9 1/4" 7.7
QA1L12S1LD 01384817 0.4 – 1.3 1.1 – 3.7 1270 0.95 302 34 13 1/4" 0.0
QA1L12S4LD 01379098 0.4 – 1.3 1.1 – 3.7 1270 0.95 302 34 13 1/4" 0.0
QA1L12S4SD 01382381 0.4 – 1.3 1.1 – 3.7 1270 0.85 299 27 10 1/4" 0.0
QA1L05S4SD 01379031 0.4 – 1.3 1.1 – 4.1 500 0.85 299 27 10 1/4" 0.0
BALD1214RD5-R25-H4 04367744 1.4 – 4.0 1200 1.00 284 31 13 1/4" 7.7
BALD1207RD5-R25-H4 04367702 1.4 – 5.7 650 1.00 275 31 13 1/4" 7.7
BALD1207RD5-R25-S4 53558425 1.4 – 5.7 650 1.00 275 31 13 1/4" 7.7
BALD1207RD5-R25-S6 53558524 1.4 – 5.7 650 1.00 275 31 13 3/8" 7.7
BALD1207RD5-R18-S4 53616991 1.8 – 4.9 650 1.00 303 23 9 1/4" 7.7
QA1L08S1LD 01384809 0.4 – 1.3 1.1 – 3.8 1.8 – 5.3 850 0.95 302 34 13 1/4" 0.0
QA1L08S4LD 01379122 0.4 – 1.3 1.1 – 3.8 1.8 – 5.3 850 0.95 302 34 13 1/4" 0.0
QA1L08S6LD 01379668IRI 0.4 – 1.3 1.1 – 3.8 1.8 – 5.3 850 0.95 302 34 13 3/8" 0.0
QA1L02S1LD 89941793 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 250 0.95 302 34 13 1/4" 0.0
QA1L02S6LD 01379643 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 250 0.95 302 34 13 3/8" 0.0
QA1L05S1LD 01384791 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 500 0.95 302 34 13 1/4" 0.0
QA1L05S4LD 01379023 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 500 0.95 302 34 13 1/4" 0.0
QA1L05S6LD 01379650 0.4 – 1.3 1.1 – 3.8 1.8 – 6.4 500 0.95 302 34 13 3/8" 0.0
BALD2206RD5-R25-H4 04382594 2.2 – 12.0 560 1.30 314 31 13 1/4" 10.8
BALD2206RD5-R25-S4 53557682 2.2 – 12.0 560 1.30 314 31 13 1/4" 10.8
BALD2206RD5-R25-S6 04367751 2.2 – 12.0 560 1.30 314 31 13 3/8" 10.8
BALD1202RD5-R18-S4 53619136 2.6 – 9.0 140 1.00 315 23 9 1/4" 7.7
BALD1202RD5-R25-H4 04367686 2.6 – 9.4 140 1.00 287 31 13 1/4" 7.7
41AA9LTS6-EU 01341478 2.8 – 6.6 2.8 – 10.2 950 1.80 361 38 15 3/8" 14.5
BALD2203RD5-R28-S6 04362331 2.8 – 31.0 170 1.80 399 32 14 3/8" 10.8
BALD2210RD5-R25-S6 04367777 3.2 – 7.5 900 1.30 314 31 13 3/8" 10.8
QA1L05S1XLD 49818032 1.4 – 4.3 3.5 – 10.0 500 1.03 329 34 13 1/4" 0.0
QA1L05S6XLD 01380427 1.4 – 4.3 3.5 – 10.0 500 1.03 329 34 13 3/8" 0.0
QA1L02S1XLD 49817935 1.4 – 4.3 3.5 – 11.5 250 1.03 329 34 13 1/4" 0.0
QA1L02S6XLD 01380104IRI 1.4 – 4.3 3.5 – 11.5 250 1.03 329 34 13 3/8" 0.0
41AA6LTS6-EU 01340074 2.5 – 5.8 2.5 – 9.1 4.0 – 14.7 600 1.80 361 48 16 3/8" 14.5
