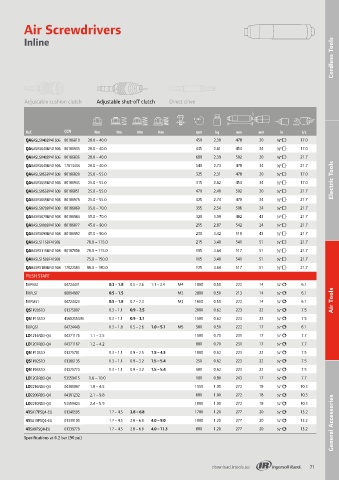

Air Screwdrivers

Inline
Cordless Tools Cordless Tools

Adjustable cushion clutch Adjustable shut-off clutch Direct drive Positive jaw clutch

Ref. CCN Nm Nm Nm Nm rpm kg mm mm in l/s
QA6ASLS040BP41S06 80186810 20.0 – 40.0 450 2.30 478 20 3/8" 17.0
QA6ASRS040BF41S06 80186935 20.0 – 40.0 435 2.61 454 34 3/8" 17.0
QA8ASLS040BP41S06 80186836 20.0 – 40.0 600 2.39 502 20 3/8" 21.7
QA8ASRS040BF41S06 17013434 20.0 – 40.0 540 2.73 478 34 3/8" 21.7
QA6ASLS055BP41S08 80186828 25.0 – 55.0 325 2.31 478 20 1/2" 17.0
QA6ASRS055BF41S08 80186943 25.0 – 55.0 315 2.62 454 34 1/2" 17.0 Electric Tools Electric Tools
QA8ASLS055BP41S08 80186851 25.0 – 55.0 470 2.40 502 20 1/2" 21.7
QA8ASRS055BF41S08 80186976 25.0 – 55.0 425 2.74 478 34 1/2" 21.7
QA8ASLS070BP41S08 80186869 35.0 – 70.0 355 2.54 506 24 1/2" 21.7
QA8ASRS070BF41S08 80186984 35.0 – 70.0 320 3.09 482 43 1/2" 21.7
QA8ASLS090BP41S08 80186877 45.0 – 90.0 255 2.87 542 24 1/2" 21.7
QA8ASRS090BF41S08 80186992 45.0 – 90.0 230 3.42 518 43 1/2" 21.7
QA8ASLS115BF41S08 70.0 – 115.0 215 3.40 541 51 1/2" 21.7
QA8ASRS115BF41S08 80187008 70.0 – 115.0 195 3.64 517 51 1/2" 21.7
QA8ASLS150BF41S08 75.0 – 150.0 165 3.40 541 51 1/2" 21.7
QA8ASRS180BF41S08 17022583 90.0 – 180.0 125 3.64 517 51 1/2" 21.7
PUSH START
1RPNS1 04724431 0.3 – 1.8 0.5 – 2.6 1.1 – 3.4 M4 1000 0.50 222 14 1/4" 6.1
1RPLS1 80094907 0.5 – 1.5 M2 2800 0.50 213 14 1/4" 6.1
1RPMS1 04724423 0.5 – 1.8 0.7 – 2.3 M3 1650 0.50 222 14 1/4" 6.1 Air Tools
QS1P20S1D 01375807 0.3 – 1.1 0.9 – 2.5 2000 0.62 223 22 1/4" 7.5
QS1P15S1D 45602554IRI 0.3 – 1.1 0.9 – 3.1 1500 0.62 223 22 1/4" 7.5
1RPQS1 04724449 0.3 – 1.8 0.5 – 2.6 1.0 – 5.1 M5 500 0.50 222 17 1/4" 6.1
LD1214RD3-Q4 04371175 1.1 – 2.5 1500 0.70 231 17 1/4" 7.7
LD1207RD3-Q4 04371167 1.2 – 4.2 800 0.70 231 17 1/4" 7.7
QS1P10S1D 01375781 0.3 – 1.1 0.9 – 2.5 1.5 – 4.5 1000 0.62 223 22 1/4" 7.5
QS1P02S1D 01386135 0.3 – 1.1 0.9 – 3.2 1.5 – 5.4 250 0.62 223 22 1/4" 7.5
QS1P05S1D 01375773 0.3 – 1.1 0.9 – 3.2 1.5 – 5.4 500 0.62 223 22 1/4" 7.5
LD1202RD3-Q4 53559415 1.6 – 10.0 180 0.80 243 17 1/4" 7.7
LD2216RD3-Q4 04380887 1.8 – 4.5 1550 1.00 272 18 1/4" 10.3
LD2206RD3-Q4 04381232 2.1 – 9.8 600 1.00 272 18 1/4" 10.3
General Accessories General Accessories
LD2210RD3-Q4 53559423 2.4 – 5.9 1000 1.00 272 18 1/4" 10.3
41SA17PSQ4-EU 01340595 1.7 – 4.5 2.8 – 6.8 1700 1.20 277 20 1/4" 13.2
41SA10PSQ4-EU 01339100 1.7 – 4.5 2.8 – 6.8 4.0 – 9.0 1000 1.20 277 20 1/4" 13.2
41SA8PSQ4-EU 01339779 1.7 – 4.5 2.8 – 6.8 4.0 – 11.3 800 1.20 277 20 1/4" 13.2
Specifications at 6.2 bar (90 psi)
