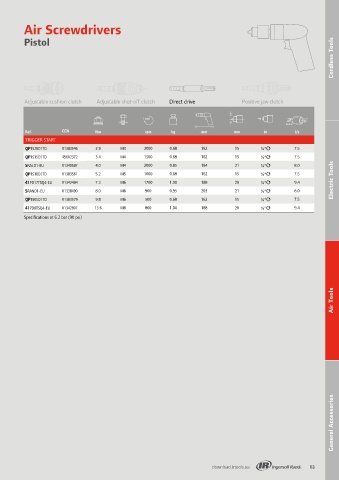

Air Screwdrivers

Pistol
Cordless Tools Cordless Tools

Adjustable cushion clutch Adjustable shut-off clutch Direct drive Positive jaw clutch

Ref. CCN Nm rpm kg mm mm in l/s
TRIGGER START
QP1S20D1TD 01383546 2.9 M3 2000 0.68 162 15 1/4" 7.5
QP1S15D1TD 45602372 3.4 M4 1500 0.68 162 15 1/4" 7.5
5RALD1-EU 01340587 4.0 M4 2000 0.85 184 21 1/4" 8.0
QP1S10D1TD 01383561 5.2 M5 1000 0.68 162 15 1/4" 7.5
41PD17TSQ4-EU 01342484 7.3 M6 1700 1.00 188 20 1/4" 9.4 Electric Tools Electric Tools
5RAND1-EU 01338490 8.0 M6 900 0.95 203 21 1/4" 8.0
QP1S05D1TD 01383579 9.8 M6 500 0.68 162 15 1/4" 7.5
41PD8TSQ4-EU 01342807 13.6 M8 800 1.00 188 20 1/4" 9.4
Specifications at 6.2 bar (90 psi)
