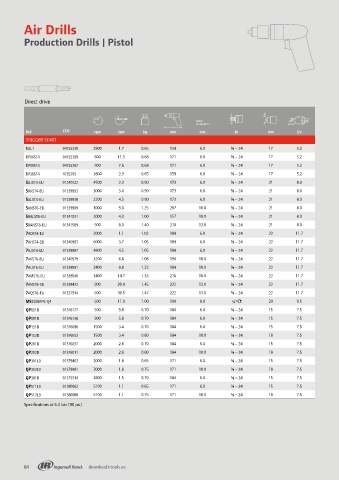

Air Drills

Production Drills | Pistol

Direct drive

Ref. CCN rpm rpm kg mm mm in mm l/s
TRIGGER START
1AL1 04725230 2800 1.7 0.65 159 6.0 3/8 – 24 17 5.2
1P06ST4 04725289 600 11.3 0.68 171 6.0 3/8 – 24 17 5.2
1P09ST4 04725297 900 7.6 0.68 171 6.0 3/8 – 24 17 5.2
1P38ST4 4725305 3800 2.3 0.65 159 6.0 3/8 – 24 17 5.2
5AJST4-EU 01340322 4500 2.3 0.90 173 6.0 3/8 – 24 21 8.0
5AKST4-EU 01339993 3000 3.4 0.90 173 6.0 3/8 – 24 21 8.0
5ALST4-EU 01338938 2200 4.5 0.90 173 6.0 3/8 – 24 21 8.0
5ANST6-EU 01339969 1000 9.0 1.25 207 10.0 3/8 – 24 21 8.0
5RALST6-EU 01341031 2000 4.0 1.00 157 10.0 3/8 – 24 21 8.0
5RANST8-EU 01341569 900 8.0 1.40 210 13.0 3/8 – 24 21 8.0
7ADST4-EU 2000 1.1 1.02 189 6.0 3/8 – 24 22 11.7
7AHST4-EU 01340983 6000 3.7 1.05 189 6.0 3/8 – 24 22 11.7
7AJST4-EU 01338987 4800 4.5 1.05 189 6.0 3/8 – 24 22 11.7
7AKST6-EU 01340579 3200 6.6 1.08 194 10.0 3/8 – 24 22 11.7
7ALST6-EU 01338581 2400 8.8 1.22 189 10.0 3/8 – 24 22 11.7
7AMST6-EU 01338540 1400 14.7 1.33 216 10.0 3/8 – 24 22 11.7
7ANST8-EU 01338433 900 20.9 1.45 222 13.0 3/8 – 24 22 11.7
7AQST8-EU 01337914 600 30.5 1.47 222 13.0 3/8 – 24 22 11.7
MS2206RP5-Q4 600 11.0 1.00 190 8.0 1/4" 20 9.5
QP051D 01376177 500 9.8 0.70 184 6.0 3/8 – 24 15 7.5
QP091D 01376136 900 5.8 0.70 184 6.0 3/8 – 24 15 7.5
QP151D 01376086 1500 3.4 0.70 184 6.0 3/8 – 24 15 7.5
QP152D 01376052 1500 3.4 0.80 184 10.0 3/8 – 24 18 7.5
QP201D 01376037 2000 2.8 0.70 184 6.0 3/8 – 24 15 7.5
QP202D 01376011 2000 2.8 0.80 184 10.0 3/8 – 24 18 7.5
QP301LD 01379403 3000 1.8 0.65 171 6.0 3/8 – 24 15 7.5
QP302LD 01379981 3000 1.8 0.75 171 10.0 3/8 – 24 18 7.5
QP381D 01375914 3800 1.5 0.70 184 6.0 3/8 – 24 15 7.5
QP511LD 01380062 5100 1.1 0.65 171 6.0 3/8 – 24 15 7.5
QP512LD 01380088 5100 1.1 0.75 171 10.0 3/8 – 24 18 7.5
Specifications at 6.2 bar (90 psi)
