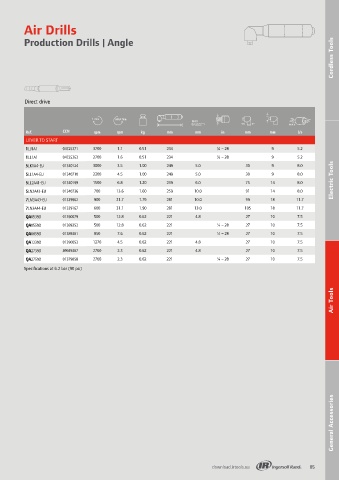

Page 85 - Assembly_Solutions

Air Drills

Production Drills | Angle
Cordless Tools Cordless Tools

Direct drive

Ref. CCN rpm rpm kg mm mm in mm mm l/s
LEVER TO START
1LJ1A1 04725271 3700 1.1 0.51 234 ¼ – 28 9 5.2
1LL1A1 04725263 2700 1.6 0.51 234 ¼ – 28 9 5.2
5LK1A4-EU 01340124 3000 3.5 1.00 249 5.0 30 9 8.0
5LL1A4-EU 01340710 2200 4.5 1.00 249 5.0 30 9 8.0
5LL2A41-EU 01340199 1500 6.8 1.20 239 6.0 75 14 8.0 Electric Tools Electric Tools
5LN2A43-EU 01340736 700 13.6 1.60 259 10.0 91 14 8.0
7LM3A43-EU 01339902 900 21.7 1.79 281 10.0 99 18 11.7
7LN3A44-EU 01339167 600 31.1 1.90 281 13.0 105 18 11.7
QA0539D 01390079 500 12.8 0.62 221 4.8 27 10 7.5
QA0559D 01389253 500 12.8 0.62 221 ¼ – 28 27 10 7.5
QA0859D 01389261 850 7.6 0.62 221 ¼ – 28 27 10 7.5
QA1239D 01390053 1270 4.5 0.62 221 4.8 27 10 7.5
QA2739D 89949267 2700 2.3 0.62 221 4.8 27 10 7.5
QA2759D 01379858 2700 2.3 0.62 221 ¼ – 28 27 10 7.5
Specifications at 6.2 bar (90 psi)
