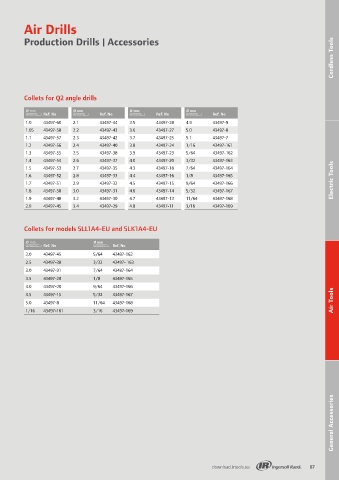

Page 87 - Assembly_Solutions

Air Drills

Production Drills | Accessories
Cordless Tools Cordless Tools

Collets for Q2 angle drills

Ø mm Ø mm Ø mm Ø mm
Ref. No Ref. No Ref. No Ref. No
1.0 43497-60 2.1 43497-44 3.5 43497-28 4.9 43497-9
1.05 43497-58 2.2 43497-43 3.6 43497-27 5.0 43497-8
1.1 43497-57 2.3 43497-42 3.7 43497-25 5.1 43497-7
1.2 43497-56 2.4 43497-40 3.8 43497-24 1/16 43497-161
1.3 43497-55 2.5 43497-38 3.9 43497-23 5/64 43497-162
1.4 43497-54 2.6 43497-37 4.0 43497-20 3/32 43497-163
1.5 43497-53 2.7 43497-35 4.3 43497-18 7/64 43497-164
1.6 43497-52 2.8 43497-33 4.4 43497-16 1/8 43497-165
1.7 43497-51 2.9 43497-32 4.5 43497-15 9/64 43497-166 Electric Tools Electric Tools
1.8 43497-50 3.0 43497-31 4.6 43497-14 5/32 43497-167
1.9 43497-48 3.2 43497-30 4.7 43497-13 11/64 43497-168
2.0 43497-45 3.4 43497-29 4.8 43497-11 3/16 43497-169

Collets for models 5LL1A4-EU and 5LK1A4-EU

Ø mm Ø mm
Ref. No Ref. No
2.0 43497-45 5/64 43497-162
2.5 43497-38 3/32 43497- 163
3.0 43497-31 7/64 43497-164
3.5 43497-28 1/8 43497-165
4.0 43497-20 9/64 43497-166
4.5 43497-15 5/32 43497-167
5.0 43497-8 11/64 43497-168 Air Tools
1/16 43497-161 3/16 43497-169

General Accessories General Accessories

download.irtools.eu 87
