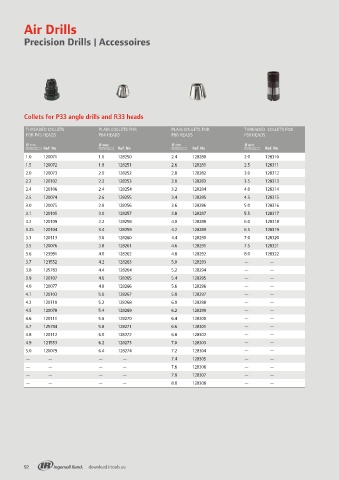

Page 92 - Assembly_Solutions

Air Drills

Precision Drills | Accessoires

Collets for P33 angle drills and R33 heads

THREADED COLLETS PLAIN COLLETS FOR PLAIN COLLETS FOR THREADED COLLETS FOR
FOR P45 HEADS P64 HEADS P80 HEADS F80 HEADS
Ø mm Ø mm Ø mm Ø mm
Ref. No Ref. No Ref. No Ref. No
1.0 120071 1.6 128250 2.4 128280 2.0 128310
1.5 120072 1.8 128251 2.6 128281 2.5 128311
2.0 120073 2.0 128252 2.8 128282 3.0 128312
2.2 120102 2.2 128253 3.0 128283 3.5 128313
2.4 120106 2.4 128254 3.2 128284 4.0 128314
2.5 120074 2.6 128255 3.4 128285 4.5 128315
3.0 120075 2.8 128256 3.6 128286 5.0 128316
3.1 120105 3.0 128257 3.8 128287 5.5 128317
3.2 120109 3.2 128258 4.0 128288 6.0 128318
3.25 120104 3.4 128259 4.2 128289 6.5 128319
3.3 120113 3.6 128260 4.4 128290 7.0 128320
3.5 120076 3.8 128261 4.6 128291 7.5 128321
3.6 123991 4.0 128262 4.8 128292 8.0 128322
3.7 121552 4.2 128263 5.0 128293 — —
3.8 125783 4.4 128264 5.2 128294 — —
3.9 120107 4.6 128265 5.4 128295 — —
4.0 120077 4.8 128266 5.6 128296 — —
4.1 120103 5.0 128267 5.8 128297 — —
4.2 120110 5.2 128268 6.0 128298 — —
4.5 120078 5.4 128269 6.2 128299 — —
4.6 120111 5.6 128270 6.4 128300 — —
4.7 125784 5.8 128271 6.6 128301 — —
4.8 120112 6.0 128272 6.8 128302 — —
4.9 121553 6.2 128273 7.0 128303 — —
5.0 120079 6.4 128274 7.2 128304 — —
— — — — 7.4 128305 — —
— — — — 7.6 128306 — —
— — — — 7.8 128307 — —
— — — — 8.0 128308 — —
