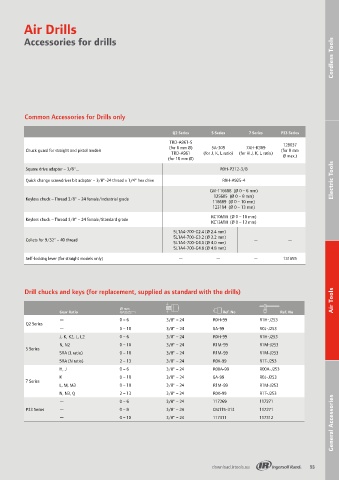

Page 93 - Assembly_Solutions

Air Drills

Accessories for drills
Cordless Tools Cordless Tools

Common Accessories for Drills only

Q2 Series 5 Series 7 Series P33 Series
TRD-A961-S
(for 6 mm Ø) 5A-309 7AH-K309 128037
Chuck guard for straight and pistol models (for 8 mm
TRD-A961 (for J, K, L ratio) (for H J, K, L ratio)
(for 10 mm Ø) Ø max.)
Square drive adapter – 3/8"... R0H-P212-3/8

Quick change screwdriver bit adapter – 3/8"-24 thread x 1/4" hex drive R0H-A925-4 Electric Tools Electric Tools
CM-116688 (Ø 0 – 6 mm)
125605 (Ø 0 – 8 mm)
Keyless chuck – Thread 3/8" – 24 female/Industrial grade
116689 (Ø 0 – 10 mm)
123194 (Ø 0 – 13 mm)
KC10MM (Ø 0 – 10 mm)
Keyless chuck – Thread 3/8" – 24 female/Standard grade
KC13MM (Ø 0 – 13 mm)
5L1A4-700-G2.4 (Ø 2.4 mm)
5L1A4-700-G3.2 (Ø 3.2 mm)
Collets for 9/32" – 40 thread — —
5L1A4-700-G4.0 (Ø 4.0 mm)
5L1A4-700-G4.8 (Ø 4.8 mm)
Self-locking lever (for straight models only) — — — 131655

Drill chucks and keys (for replacement, supplied as standard with the drills) Air Tools

Ø mm
Gear Ratio Ref. No Ref. No
— 0 – 6 3/8" – 24 R0H-99 R1H-J253
Q2 Series
— 0 – 10 3/8" – 24 6A-99 R0J-J253
J, K, K2, L, L2 0 – 6 3/8" – 24 R0H-99 R1H-J253
N, N2 0 – 10 3/8" – 24 R1M-99 R1M-J253
5 Series
5RA (L ratio) 0 – 10 3/8" – 24 R1M-99 R1M-J253
5RA (N ratio) 2 – 13 3/8" – 24 R0K-99 R1T-J253
H, J 0 – 6 3/8" – 24 R00A-99 R00A-J253
K 0 – 10 3/8" – 24 6A-99 R0J-J253
7 Series
L, M, M3 0 – 10 3/8" – 24 R1M-99 R1M-J253
N, N3, Q 2 – 13 3/8" – 24 R0K-99 R1T-J253
General Accessories General Accessories
— 0 – 6 3/8" – 24 117269 117271
P33 Series — 0 – 8 3/8" – 24 CM115-313 117271
— 0 – 10 3/8" – 24 117311 117312
