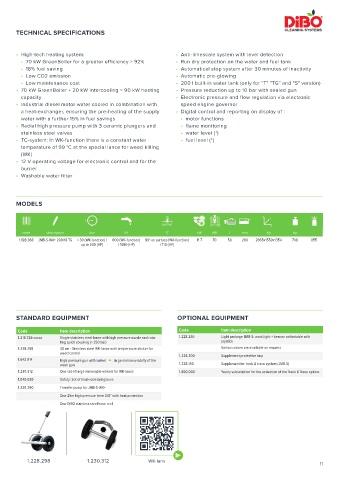

TECHNICAL SPECIFICATIONS

• High-tech heating system: • Anti-limescale system with level detection
• 70 kW GreenBoiler for a greater efficiency > 92% • Run dry protection on the water and fuel tank
• 18% fuel saving • Automatical stop system after 30 minutes of inactivity
• Low CO2 emission • Automatic pre-glowing
• Low maintenance cost • 200 l built-in water tank (only for "T" "TG" and "S" version)
• 70 kW GreenBoiler + 20 kW Intercooling = 90 kW heating • Pressure reduction up to 10 bar with sealed gun
capacity • Electronic pressure and flow regulation via electronic
• Industrial diesel motor water cooled in combination with speed engine governor
a heat-exchanger, ensuring the pre-heating of the supply • Digital control and reporting on display of :
water with a further 15% in fuel savings • motor functions
• Radial high pressure pump with 3 ceramic plungers and • flame monitoring
stainless steel valves • water level (*)
• TC-system: In WK-function there is a constant water • fuel level (*)
temperature of 99 °C at the special lance for weed killing
(WK)
• 12 V operating voltage for electronic control and for the
burner
• Washable water filter

MODELS

code description bar l/h °C kW kW l mm Kg kg
1.128.368 JMB-S-WK+ 200/18 TG < 30 (WK-function) / 600 (WK-function) 99° on surface (WK-function) 11.7 70 50 200 2665x1559x1354 740 055
up to 200 (HP) / 1080 (HP) / 110 (HP)

STANDARD EQUIPMENT OPTIONAL EQUIPMENT

Code Item description Code Item description
1.216.729.xxxxx Single stainless steel lance with high pressure nozzle and rota- 1.228.240 Light package JMB-S: work light + beacon activatable with
ting quick coupling (≤ 250 bar) joystick
1.228.298 40 cm - Stainless steel WK-lance with temperature sticker for Various colors are available on request
weed control 1.228.200 Supplement protective tarp
1.643.014 High pressure gun with swivel → large manoeuvrabilty of the
wash gun 1.228.150 Supplement for track & trace system (JMB-S)
1.230.312 One set of large removable wheels for WK-lance 1.890.000 Yearly subscription for the activation of the Track & Trace option.
1.840.030 Safety: Set of heat-resistant gloves
1.228.290 Transfer pump for JMB-S-WK+
One 25m high pressure hose 3/8” with heat protection
One DiBO stainless steel hose reel

1.228.298 1.230.312 WK-lans
11
