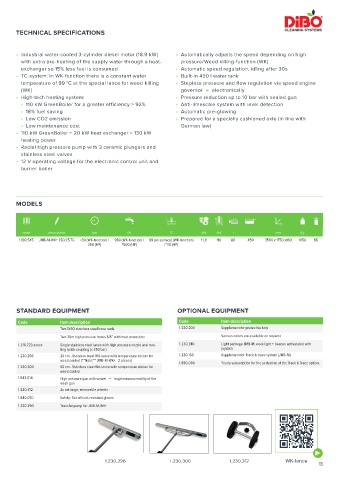

Page 13 - Dibo_Weed_control_machines

TECHNICAL SPECIFICATIONS

• Industrial water-cooled 3-cylinder diesel motor (18.9 kW) • Automatically adjusts the speed depending on high
with extra pre-heating of the supply water through a heat- pressure/Weed killing-function (WK)
exchanger so 15% less fuel is consumed • Automatic speed regulation, idling after 30s
• TC-system: In WK-function there is a constant water • Built-in 450 l water tank
temperature of 99 °C at the special lance for weed killing • Stepless pressure and flow regulation via speed engine
(WK) governor → electronically
• High-tech heating system: • Pressure reduction up to 10 bar with sealed gun
• 110 kW GreenBoiler for a greater efficiency > 92% • Anti-limescale system with level detection
• 18% fuel saving • Automatic pre-glowing
• Low CO2 emission • Prepared for a specially cushioned axle (in line with
• Low maintenance cost German law)
• 110 kW GreenBoiler + 20 kW heat exchanger = 130 kW
heating power
• Radial high pressure pump with 3 ceramic plungers and
stainless steel valves
• 12 V operating voltage for the electronic control unit and
burner boiler

MODELS

code description bar l/h °C kW kW l l mm Kg
1.130.545 JMB-M-WK+ 250/25 TG <30 (WK-function) / 960 (WK-function) / 99 (on surface) (WK-function) 11,9 110 80 450 3500 x 1750 x160 1050 65
250 (HP) 1500 (HP) / 110 (HP)

STANDARD EQUIPMENT OPTIONAL EQUIPMENT

Code Item description Code Item description
Two DiBO stainless steel hose reels 1.230.200 Supplement for protective tarp
Two 25m high pressure hoses 3/8” with heat protection Various colors are available on request
1.216.729.xxxxx Single stainless steel lance with high pressure nozzle and rota- 1.230.240 Light package JMB-M: work light + beacon activatable with
ting quick coupling (≤ 250 bar) joystick
1.230.296 25 cm - Stainless steel WK-lance with temperature sticker for 1.230.150 Supplement for Track & trace system (JMB-M)
weed control (**Note:** JMB-M-WK+= 2 pieces) 1.890.000 Yearly subscription for the activation of the Track & Trace option.
1.230.300 50 cm - Stainless steel WK-lance with temperature sticker for
weed control
1.643.014 High pressure gun with swivel → large manoeuvrabilty of the
wash gun
1.230.312 2x set large, removable wheels
1.840.030 Safety: Set of heat-resistant gloves
1.230.290 Transfer pump for JMB-M-WK+

1.230.296 1.230.300 1.230.312 WK-lance
13
