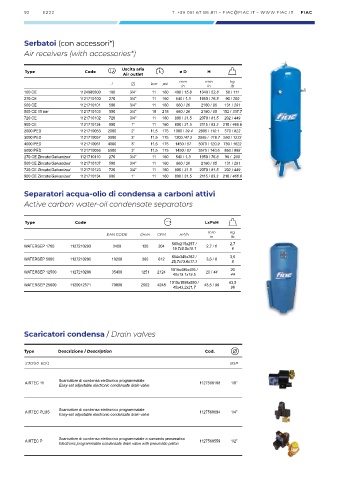

Page 94 - Kolvkompressorer_2022

92 E222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

Serbatoi (con accessori*)

Air receivers (with accessories*)

Uscita aria
Type Code ø D H
Air outlet
l Ø bar psi mm mm kg
in
in
lb
100 CE 1124080300 100 3/4” 11 160 400 / 15.8 1340 / 52.8 50 / 111
270 CE 1121710100 270 3/4” 11 160 540 / 1.3 1950 / 76.8 90 / 200
500 CE 1121710101 500 3/4” 11 160 660 / 26 2160 / 85 131 / 291
500 CE 15 bar 1121710103 500 3/4” 15 218 660 / 26 2160 / 85 152 / 337.7
720 CE 1121710102 720 3/4” 11 160 800 / 31.5 2070 / 81.5 202 / 449
900 CE 1121710124 900 1” 11 160 800 / 31.5 2115 / 83.3 210 / 466.6
2000 PED 1121710053 2000 2” 11,5 175 1000 / 39.4 2805 / 110.1 370 / 822
3000 PED 1121710057 3000 3” 11,5 175 1200 /47.2 2965 / 116.7 550 / 1222
4000 PED 1121710051 4000 3” 11,5 175 1450 / 57 3070 / 120.9 730 / 1622
5000 PED 1121710056 5000 3” 11,5 175 1450 / 57 3570 / 140.6 850 / 888
270 CE Zincato/Galvanized 1121710110 270 3/4” 11 160 540 / 1.3 1950 / 76.8 90 / 200
500 CE Zincato/Galvanized 1121710107 500 3/4” 11 160 660 / 26 2160 / 85 131 / 291
720 CE Zincato/Galvanized 1121710123 720 3/4” 11 160 800 / 31.5 2070 / 81.5 202 / 449
900 CE Zincato/Galvanized 1121710134 900 1” 11 160 800 / 31.5 2115 / 83.3 210 / 466.6

Separatori acqua-olio di condensa a carboni attivi

Active carbon water-oil condensate separators

Type Code LxPxH
mm kg
3
EAN CODE l/min CFM m /h
in lb
500x215x257 / 2,7
WATERSEP 1700 1127210293 3400 120 204 2,7 / 6
19.7x8.5x10.1 6
WATERSEP 5000 1127210295 10200 360 612 654x345x282 / 3,6 / 8 3,6
25,7x13.6x11.1 8
1015x485x495 / 20
WATERSEP 12500 1127210296 35400 1251 2124 20 / 44
40x19.1x19.5 44
1015x1098x550 / 43,5
WATERSEP 25000 1120012571 70800 2502 4248 43,5 / 96
40x43,2x21,7 96

Scaricatori condensa / Drain valves

Type Descrizione / Description Cod.

230/50-60/1 BSP

Scaricatore di condensa elettronico programmabile
AIRTEC 11 1127560108 1/8”
Easy-set adjustable electronic condensate drain valve

Scaricatore di condensa elettronico programmabile
AIRTEC PLUS 1127560694 1/4”
Easy-set adjustable electronic condensate drain valve

AIRTEC P Scaricatore di condensa elettronico programmabile a comando pneumatico 1127560559 1/2”
Electronic programmable condensate drain valve with pneumatic piston
