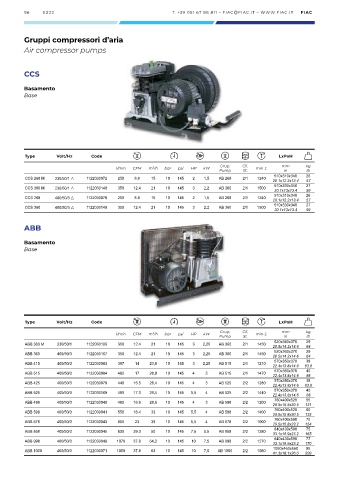

Page 98 - Kolvkompressorer_2022

96 E222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

Gruppi compressori d’aria
Air compressor pumps

CCS

Basamento
Base

Type Volt/Hz Code LxPxH
l/min CFM m /h bar psi HP kW Grup. Cil. min-1 mm kg
3
Pump St. in lb
510x310x340 26
CCS 268 M 230/50/1 n 1122030072 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240
20.1x12.2x13.4 57
510x330x340 27
CCS 360 M 230/50/1 n 1122030140 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500
20.1x13x13.4 59
510x310x340 26
CCS 268 400/50/3 n 1122030078 250 8.8 15 10 145 2 1,5 AB 268 2/1 1240
20.1x12.2x13.4 57
510x330x340 27
CCS 360 400/50/3 n 1122030149 350 12.4 21 10 145 3 2,2 AB 360 2/1 1500
20.1x13x13.4 59
ABB
Basamento
Base

Type Volt/Hz Code LxPxH
Grup. Cil. mm kg
l/min CFM m /h bar psi HP kW min-1
3
Pump St. in lb
520x360x370 29
ABB 360 M 230/50/1 1122030106 350 12.4 21 10 145 3 2,25 AB 360 2/1 1450
20.5x14.2x14.6 64
520x360x370 29
ABB 360 400/50/3 1122030107 350 12.4 21 10 145 3 2,25 AB 360 2/1 1450
20.5x14.2x14.6 64
570x350x370 38
ABB 415 400/50/3 1122030083 397 14 23,8 10 145 3 2,25 AB 515 2/1 1210
22.4x13.8x14.6 83.8
570x350x370 40
ABB 515 400/50/3 1122030084 482 17 28,9 10 145 4 3 AB 515 2/1 1470
22.4x13.8x14.6 88
570x350x370 38
ABB 425 400/50/3 1122030079 440 15.5 26,4 10 145 4 3 AB 525 2/2 1280
22.4x13.8x14.6 83.8
570x350x370 40
ABB 525 400/50/3 1122030109 490 17.3 29,4 10 145 5,5 4 AB 525 2/2 1440
22.4x13.8x14.6 88
760x400x520 55
ABB 498 400/50/3 1122030040 480 16.9 28,8 10 145 4 3 AB 598 2/2 1200
29.5x15.8x20.5 121
760x400x520 60
ABB 598 400/50/3 1122030041 550 18.4 33 10 145 5,5 4 AB 598 2/2 1400
29.5x15.8x20.5 132
760x400x590 70
ABB 678 400/50/3 1122030043 650 23 39 10 145 5,5 4 AB 678 2/2 1000
29.5x15.8x23.2 154
840x430x590 75
ABB 858 400/50/3 1122030045 830 29.3 50 10 145 7,5 5,5 AB 858 2/2 1280
33.1x16.9x23.2 165
840x430x590 77
ABB 998 400/50/3 1122030049 1070 37.8 64,2 10 145 10 7,5 AB 998 2/2 1270
33.1x16.9x23.2 170
1050x460x660 95
ABB 1000 400/50/3 1122030071 1050 37.8 63 10 145 10 7,5 AB 1000 2/2 1080
41.3x18.1x26.0 209
