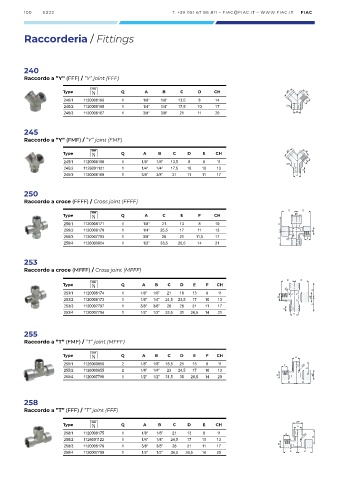

Raccorderia / Fittings

240
Raccordo a ”Y” (FFF) / ”Y” joint (FFF)

Type Q A B C D CH øC B
240/1 1120008166 1 1/8” 1/8” 13,5 8 14 D
240/2 1120008165 1 1/4” 1/4” 17,5 10 17 CH
240/3 1120008167 1 3/8” 3/8” 21 11 20 A

245
Raccordo a ”Y” (FMF) / ”Y” joint (FMF)

Type Q A B C D E CH øC B
245/1 1120008168 1 1/8” 1/8” 13,5 8 8 11 E
CH
245/2 1126001121 1 1/4” 1/4” 17,5 10 10 13
D
245/3 1120008169 1 3/8” 3/8” 21 11 11 17 A
250
Raccordo a croce (FFFF) / Cross joint (FFFF)

C C
Type Q A C E F CH øE
250/1 1120008171 1 1/8” 21 13 8 10 C
250/2 1120008170 1 1/4” 25,5 17 11 13 A
250/3 1120007793 1 3/8” 28 21 11,5 17
C CH F
250/4 1126000854 1 1/2” 33,5 26,5 14 21

253
Raccordo a croce (MFFF) / Cross joint (MFFF)

D C
Type Q A B C D E F CH
C
CH
253/1 1120008174 1 1/8” 1/8” 21 18 13 8 11
253/2 1120008173 1 1/4” 1/4” 24,5 23,5 17 10 13 A øE
253/3 1120007797 1 3/8” 3/8” 28 26 21 11 17 C
F
253/4 1120007794 1 1/2” 1/2” 33,5 31 26,5 14 21 B

255
Raccordo a ”T” (FMF) / ”T” joint (MFFF)

Type Q A B C D E F CH A
255/1 1126000856 2 1/8” 1/8” 18,5 21 13 8 11 F CH
255/2 1126000855 2 1/4” 1/4” 23 24,5 17 10 13 C
255/4 1120007798 1 1/2” 1/2” 31,5 35 26,5 14 20 B øE
D D

258
Raccordo a ”T” (FFF) / ”T” joint (FFF)

øD
Type Q A B C D E CH A
258/1 1120008175 1 1/8” 1/8” 21 13 8 11 E CH
258/2 1126001122 1 1/4” 1/4” 24,5 17 10 13 C
258/3 1120008176 1 3/8” 3/8” 28 21 11 17 B
258/4 1120007799 1 1/2” 1/2” 34,5 26,5 14 20 C C
