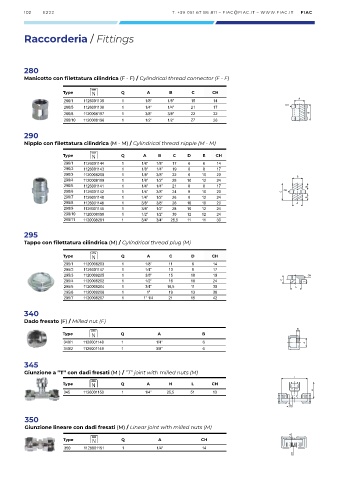

Raccorderia / Fittings

280
Manicotto con filettatura cilindrica (F - F) / Cylindrical thread connector (F - F)

Type Q A B C CH
280/1 1126001139 1 1/8” 1/8” 15 14 A
280/5 1126001138 1 1/4” 1/4” 21 17 CH
280/8 1120008197 1 3/8” 3/8” 22 22 B
280/10 1120008196 1 1/2” 1/2” 27 26
290

Nipplo con filettatura cilindrica (M - M) / Cylindrical thread nipple (M - M)

Type Q A B C D E CH
290/1 1126001144 1 1/8” 1/8” 17 6 6 14
290/2 1126001143 1 1/8” 1/4” 19 6 8 17
290/3 1120008200 1 1/8” 3/8” 22 6 10 20 B
290/4 1120008199 1 1/8” 1/2” 28 10 12 24
290/5 1126001141 1 1/4” 1/4” 21 8 8 17 E
290/6 1126001142 1 1/4” 3/8” 24 8 10 20 C CH
290/7 1126001140 1 1/4” 1/2” 26 8 12 24 D
290/8 1126001146 1 3/8” 3/8” 26 10 10 20 A
290/9 1126001145 1 3/8” 1/2” 28 10 12 24
290/10 1120008198 1 1/2” 1/2” 30 12 12 24
290/11 1120008201 1 3/4” 3/4” 28,5 11 11 30
295
Tappo con filettatura cilindrica (M) / Cylindrical thread plug (M)

Type Q A C D CH
295/1 1120008203 1 1/8” 11 6 14
295/2 1126001147 1 1/4” 13 8 17
295/3 1120008205 1 3/8” 15 10 19 CH
295/4 1120008202 1 1/2” 16 10 24 C D
295/5 1120008204 1 3/4” 16,5 11 30 A
295/6 1120008206 1 1” 19 13 38
295/7 1120008207 1 1” 1/4 21 15 42

340
Dado fresato (F) / Milled nut (F)
B
Type Q A B
340/1 1126001148 1 1/4” 6 A
340/2 1126001149 1 3/8” 6

345
Giunzione a ”T” con dadi fresati (M ) / ”T” joint with milled nuts (M)

Type Q A H L CH
345 1126001150 1 1/4” 25,5 51 13

350
Giunzione lineare con dadi fresati (M) / Linear joint with milled nuts (M)

Type Q A CH
350 1126001151 1 1/4” 14
