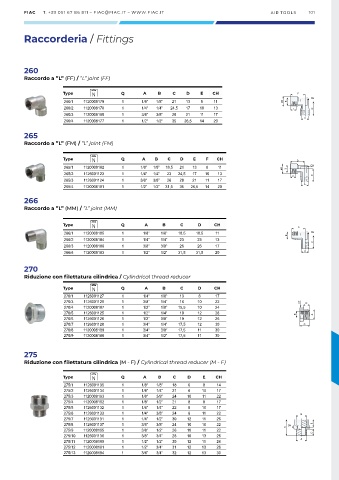

Raccorderia / Fittings

260
Raccordo a ”L” (FF) / ”L” joint (FF)

Type Q A B C D E CH C
CH
260/1 1120008179 1 1/8” 1/8” 21 13 8 11 øD B
260/2 1120008178 1 1/4” 1/4” 24,5 17 10 13 E C
260/3 1120008180 1 3/8” 3/8” 28 21 11 17
A
260/4 1120008177 1 1/2” 1/2” 35 26,5 14 20
265

Raccordo a ”L” (FM) / ”L” joint (FM)

Type Q A B C D E F CH D
265/1 1120008182 1 1/8” 1/8” 18,5 21 13 8 11 øE B CH
265/2 1126001123 1 1/4” 1/4” 23 24,5 17 10 13
F C
265/3 1126001124 1 3/8” 3/8” 26 28 21 11 17
265/4 1120008181 1 1/2” 1/2” 31,5 35 26,5 14 20 A
266
Raccordo a ”L” (MM) / ”L” joint (MM)

Type Q A B C D CH
D
266/1 1120008185 1 1/8” 1/8” 18,5 18,5 11 CH
B
266/2 1120008184 1 1/4” 1/4” 23 23 13
C
266/3 1120008186 1 3/8” 3/8” 26 26 17
266/4 1120008183 1 1/2” 1/2” 31,5 31,5 20 A
270
Riduzione con filettatura cilindrica / Cylindrical thread reducer
Type Q A B C D CH
270/1 1126001127 1 1/4” 1/8” 13 8 17
270/3 1126001129 1 3/8” 1/4” 16 10 22 CH D
270/4 1120008187 1 1/2” 1/8” 15,5 10 24
270/5 1126001125 1 1/2” 1/4” 19 12 26 B A
270/6 1126001126 1 1/2” 3/8” 19 12 26
270/7 1126001128 1 3/4” 1/4” 17,5 12 30 C
270/8 1120008189 1 3/4” 3/8” 17,5 11 30
270/9 1120008188 1 3/4” 1/2” 17,5 11 30

275

Riduzione con filettatura cilindrica (M - F) / Cylindrical thread reducer (M - F)

Type Q A B C D E CH
275/1 1126001135 1 1/8” 1/8” 18 6 8 14
275/2 1126001134 1 1/8” 1/4” 21 6 10 17
275/3 1120008193 1 1/8” 3/8” 24 10 11 22
275/4 1120008192 1 1/8” 1/2” 21 8 8 17
275/5 1126001132 1 1/4” 1/4” 22 8 10 17
275/6 1126001133 1 1/4” 3/8” 24 8 11 22 B
275/7 1126001131 1 1/4” 1/2” 30 12 11 26
275/8 1126001137 1 3/8” 3/8” 24 10 10 22 CH E
275/9 1120008195 1 3/8” 1/2” 26 10 11 22 C
275/10 1126001136 1 3/8” 3/4” 28 10 13 26 D
275/11 1120008190 1 1/2” 1/2” 30 12 11 26 A
275/12 1120008191 1 1/2” 3/4” 31 12 13 26
275/13 1120008194 1 3/4” 3/4” 32 12 13 30
