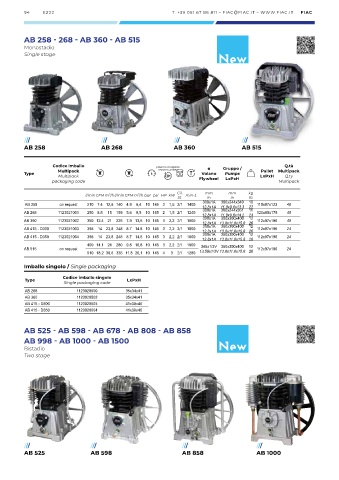

Page 96 - Kolvkompressorer_2022

94 E222 T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT FIAC

AB 258 - 268 - AB 360 - AB 515
Monostadio
New
Single stage

/// /// /// ///
AB 258 AB 268 AB 360 AB 515

Codice imballo potenza consigliata ø Gruppo / Q.tà
Multipack recomm. power Pallet Multipack
Type Volano Pumps
Multipack Flywheel LxPxH LxPxH Q.ty
packaging code Multipack
Cil. mm mm kg
l/min CFM m /hl/min CFM m /h bar psi HP kW min-1
3
3
St. in in lb
AB 258 on request 210 7.4 12,6 140 4.9 8,4 10 145 2 1,5 2/1 1400 300x1A 300x244x340 10 110x97x123 48
12.8x1A 11.8x9.6x13.3 22
AB 268 1123021001 250 8.8 15 159 5.6 9,5 10 145 2 1,5 2/1 1240 300x1A 300x244x361 11 120x80x175 48
12.8x1A 11.8x9.6x14.2 24
AB 360 1123021002 350 12.4 21 225 7.9 13,5 10 145 3 2,2 2/1 1500 300x1A 350x300x400 12 112x97x196 48
12.8x1A 13.8x11.8x15.8 26
AB 415 - D300 1123021003 398 14 23,8 248 8.7 14.8 10 145 3 2,2 2/1 1000 300x1A 350x300x400 12 112x97x196 24
12.8x1A 13.8x11.8x15.8 26
AB 415 - D350 1123021004 398 14 23,8 248 8.7 14.8 10 145 3 2,2 2/1 1000 300x1A 350x300x400 12 112x97x196 24
12.8x1A 13.8x11.8x15.8 26
400 14.1 24 280 9.8 16,8 10 145 3 2,2 2/1 1000 345x1/3V 350x300x400 12
AB 515 on request 112x97x196 24
510 18.2 30,6 335 11.8 20,1 10 145 4 3 2/1 1280 13.58x1/3V 13.8x11.8x15.8 26
Imballo singolo / Single packaging
Codice imballo singolo
Type LxPxH
Single packaging code
AB 268 1123020500 35x34x41
AB 360 1123020502 35x34x41
AB 415 - D300 1123020503 41x38x46
AB 415 - D350 1123020504 41x38x46

AB 525 - AB 598 - AB 678 - AB 808 - AB 858

AB 998 - AB 1000 - AB 1500
Bistadio New
Two stage

/// /// /// ///
AB 525 AB 598 AB 858 AB 1000
