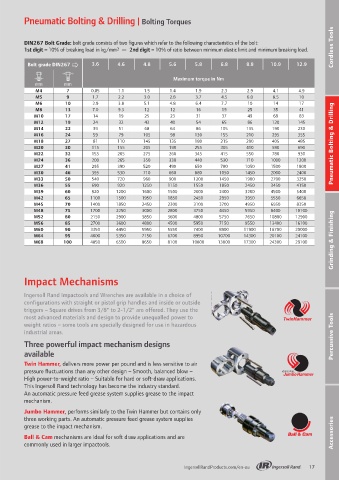

Page 17 - Industrial & Production Tools 2019

Pneumatic Bolting & Drilling | Selection Chart Pneumatic Bolting & Drilling | Bolting Torques
Cordless Tools Cordless Tools

DIN267 Bolt Grade: bolt grade consists of two figures which refer to the following characteristics of the bolt:
1st digit = 10% of breaking load in kg/mm — 2nd digit = 10% of ratio between minimum elastic limit and minimum breaking load.
2

Bolt grade DIN267 ð 3.6 4.6 4.8 5.6 5.8 6.8 8.8 10.9 12.9

Maximum torque in Nm
mm mm
M4 7 0.85 1.1 1.5 1.4 1.9 2.3 2.9 4.1 4.9
M5 9 1.7 2.2 3.0 2.8 3.7 4.5 6.0 8.5 10
M6 10 2.9 3.8 5.1 4.8 6.4 7.7 10 14 17
M8 13 7.0 9.3 12 12 16 19 25 35 41
Impactools M10 17 14 19 25 23 31 37 49 69 83
Square Page 40 60 80 100 200 400 600 800 1000 1500 2000 3000 4000 5000 6000 8000 10000 M12 19 24 32 43 40 54 65 86 120 145
drive no. M14 22 39 51 68 64 86 105 135 190 230
2101XP 1/4" 18 M16 24 59 79 105 98 130 155 210 295 355
2102XP 18 M18 27 81 110 145 135 180 215 290 405 485
2902P1 20 M20 30 115 155 205 190 255 305 410 580 690 Pneumatic Bolting & Drilling
Recommended working torque
2115QXPA 3/8" 18 M22 32 155 205 275 260 345 415 550 780 930
2115PTiMAX 19 Maximum torque M24 36 200 265 350 330 440 530 710 1000 1200
2115QTiMAX 19 M27 41 295 390 520 490 650 780 1050 1500 1800
2125PTiMAX 19 M30 46 395 530 710 660 880 1050 1450 2000 2400
2125QTiMAX 19 M33 50 540 720 960 900 1200 1450 1900 2700 3250
2906P1-EU 1/2" 20 M36 55 690 920 1250 1150 1550 1850 2450 3450 4150
2135XP 18 M39 60 920 1200 1600 1500 2000 2400 3200 4500 5400
2135QPTiMAX 19 M42 65 1100 1500 1950 1850 2450 2950 3950 5550 6650
2920B9-EU 20 M45 70 1400 1850 2450 2300 3100 3700 4950 6950 8350
2920B1-EU 20 M48 75 1700 2250 3000 2800 3750 4450 5950 8400 10100
2161XP 3/4" 18 M52 80 2150 2900 3850 3600 4800 5750 7650 10800 12900
2145QiMAX 19 M56 85 2700 3600 4800 4500 5950 7150 9550 13400 16100
2925RBP1Ti 21 M60 90 3350 4450 5950 5550 7400 8900 11900 16700 20000
2934B9-EU 20 M64 95 4000 5350 7150 6700 8950 10700 14300 20100 24100
2171XP 18 M68 100 4850 6500 8650 8100 10800 13000 17300 24300 29100 Grinding & Finishing
2155QiMAX 19
2934P2-EU 20
2934B2-EU 20
2925RBP3Ti 1" 21
2925RB2Ti 21
3940P2Ti 22 Impact Mechanisms
3940B2Ti 22
3940A2Ti 22 Ingersoll Rand Impactools and Wrenches are available in a choice of
3942B2Ti 24 configurations with straight or pistol grip handles and inside or outside
3942A2Ti 22 triggers – Square drives from 3/8" to 2-1/2" are offered. They use the
3955B2Ti 22 most advanced materials and design to provide unequalled power to
3955A2Ti 1-1/2" 22
5980A1-EU 23 13 560 Nm weight ratios – some tools are specially designed for use in hazardous
5982A1-EU 23 27 120 Nm industrial areas.
2-1/2" Percussive Tools
588A1-EU 23 67 800 Nm
Three powerful impact mechanism designs
available
Twin Hammer, delivers more power per pound and is less sensitive to air
pressure fluctuations than any other design – Smooth, balanced blow –
ATEX Certified Impactools/Titanium Impact Wrenches
High power-to-weight ratio – Suitable for hard or soft-draw applications.
Square Page This Ingersoll Rand technology has become the industry standard.
drive no. 40 60 80 100 200 400 600 800 1000 1500 2000 3000 4000 5000 6000 8000 10000
An automatic pressure feed grease system supplies grease to the impact
2145QiMAX-SP 3/4" 25
2155QiMAX-SP 25 mechanism.
2934B2SP-EU 1" 25 Jumbo Hammer, performs similarly to the Twin Hammer but contains only
2940B2SP-EU 25
2131PSP 1/2" 25 three working parts. An automatic pressure feed grease system supplies
2925RBP1TiEX 3/4" 24 grease to the impact mechanism.
3942B2TiEX 1" 24 Ball & Cam mechanisms are ideal for soft draw applications and are Accessories
3940B2TiEX 24
3955B2 TiEX 1-1/2" 24 commonly used in larger impactools.

17
