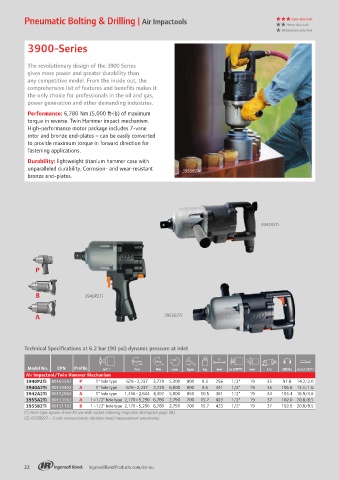

Page 22 - Industrial & Production Tools 2019

Pneumatic Bolting & Drilling | Air Impactools HHH Super-duty tools Pneumatic Bolting & Drilling | Air Impactools HHH Super-duty tools
HH Heavy-duty tools HH Heavy-duty tools
H Maintenance-duty tools H Maintenance-duty tools

3900-Series 5000-Series Cordless Tools Cordless Tools

The revolutionary design of the 3900 Series The 5000 Series is designed with durability in mind,
gives more power and greater durability than from the vanes turning the motor to the hammer
any competitive model. From the inside out, the frames and anvils. Proprietary hardening and treatment
comprehensive list of features and benefits makes it processes and excellence in manufacturing all add up
the only choice for professionals in the oil and gas, to the longest lasting, hardest hitting impact tools in
power generation and other demanding industries. the business.
Performance: 6,780 Nm (5,000 ft-lb) of maximum Performance: for fast removal and tightening of
torque in reverse. Twin Hammer impact mechanism. large fasteners. 588A1-EU model is the most powerful
High-performance motor package includes 7-vane Impactool in the world.
rotor and bronze end-plates – can be easily converted Convenience: portable, easy to handle or suspend with
to provide maximum torque in forward direction for vertical and horizontal hangers. Pneumatic Bolting & Drilling
fastening applications.
Durability: built-in lubricator and high resistance
Durability: lightweight titanium hammer case with hammer case.
unparalleled durability. Corrosion- and wear-resistant 3955B2Ti 5982A1-EU
bronze end-plates.

Grinding & Finishing

3942A2Ti

5980A1-EU
P P

B 3940P2Ti
B
5982A1-EU

A B9 3955B2Ti
Percussive Tools

Technical Specifications at 6.2 bar (90 psi) dynamic pressure at inlet
L
1 min Technical Specifications at 6.2 bar (90 psi) dynamic pressure at inlet
Model No. CPN Profile in (1) Nm Nm rpm bpm kg mm in (NPT) mm l/s dB(A) m/s 2 /K (2)
Air Impactool/Twin Hammer Mechanism L
3940P2Ti 80162597 P 1" hole type 678 – 2,237 3,729 5,300 800 9.3 256 1/2" 19 35 97.8 14.2/2.0 Model No. CPN in (1) Nm Nm rpm 1 min kg mm in (NPT) mm l/s dB(A)
bpm
3940A2Ti 80150402 A 1" hole type 678 – 2,237 3,729 6,000 800 9.6 341 1/2" 19 35 106.6 13.1/1.6 Air Impactool/Ball & Cam Impact Mechanism
3942A2Ti 80152960 A 1" hole type 1,356 – 2,644 4,407 5,000 850 10.5 361 1/2" 19 44 103.4 16.9/4.6 5980A1-EU 01337799 1 – 1/2" hole type 3,119 – 7,460 13,560 830 1,000 39.9 584 3/4" 25 65 106.1
3955A2Ti 80153562 A 1 – 1/2" hole type 2,170 – 5,290 6,780 2,750 700 15.7 423 1/2" 19 37 102.0 20.8/8.5 5982A1-EU 01338516 2 – 1/2" hole type 5,424 – 13,560 27,120 830 850 54.5 645 3/4" 25 61 105.1
3955B2Ti 80151103 B 1 – 1/2" hole type 2,170 – 5,290 6,780 2,750 700 15.7 423 1/2" 19 37 102.0 20.8/8.5 588A1-EU 01337880 2 – 1/2" hole type 16,270 – 33,900 67,800 355 550 97.5 646 1" 25 73 113.0
(1) Hole-type square drives for use with socket retaining rings (see description page 28). (1) Hole-type square drives for use with socket retaining rings (see description page 28).
(2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
