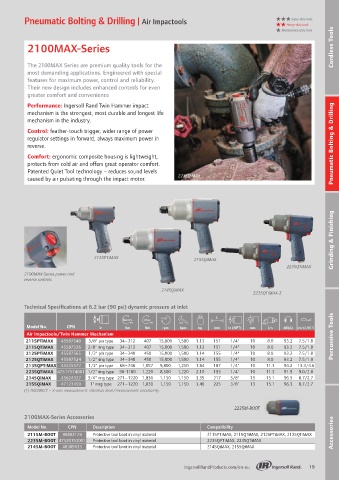

Page 19 - Industrial & Production Tools 2019

Pneumatic Bolting & Drilling | Air Impactools HHH Super-duty tools Pneumatic Bolting & Drilling | Air Impactools HHH Super-duty tools
HH Heavy-duty tools HH Heavy-duty tools
H Maintenance-duty tools H Maintenance-duty tools

2100XP-Series 2100MAX-Series Cordless Tools Cordless Tools

Perfect for any maintenance and repair application, The 2100MAX Series are premium quality tools for the
the 2100XP Series tools deliver maximum power and most demanding applications. Engineered with special
control, along with unmatched reliability that comes features for maximum power, control and reliability.
from more than a century of proven engineering and Their new design includes enhanced controls for even
innovation. greater comfort and convenience
Performance: Ingersoll Rand Twin Hammer impact Performance: Ingersoll Rand Twin Hammer impact
mechanism is the strongest, most durable and longest life mechanism is the strongest, most durable and longest life
mechanism in the industry. mechanism in the industry.
Control: one-hand forward/reverse switch for easy Control: feather-touch trigger, wider range of power
operation and power regulator. regulator settings in forward, always maximum power in
Comfort: ergonomic handle design and textured fi nish reverse. Pneumatic Bolting & Drilling
provide a secure and comfortable grip. 2135XP Comfort: ergonomic composite housing is lightweight,
protects from cold air and off ers great operator comfort.
Patented Quiet Tool technology – reduces sound levels
caused by air pulsating through the impact motor. 2235QiMAX
Air Impactools

Grinding & Finishing

2102XPA
2161XP
2115QXPA
2125PTiMAX 2155QiMAX
2171XP
2235QTiMAX
2100MAX-Series power and
reverse controls
2145QiMAX
2235QTiMAX-2
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
L
1 min L
Model No. CPN in Nm Nm rpm bpm kg mm in (NPT) mm l/s dB(A) m/s 2 /K (1) 1 min
Air Impactools/Simple Hammer Mechanism Model No. CPN in Nm Nm rpm bpm kg mm in (NPT) mm l/s dB(A) m/s 2 /K (1)
2101XPA 47520745001 1/4" Square 34 – 54 75 14,500 3,650 0.70 175 1/4" 10 4.7 84.8 3.0/1.0 Air Impactools/Twin Hammer Mechanism Percussive Tools
2102XPA 47520747001 3/8" ring type 34 – 54 75 14,500 3,650 0.70 175 1/4" 10 4.7 84.8 3.0/1.0 2115PTiMAX 45587540 3/8" pin type 34 – 312 407 15,000 1,500 1.13 151 1/4" 10 8.0 93.2 7.5/1.8
Air Impactools/Twin Hammer Mechanism 2115QTiMAX 45587326 3/8" ring type 34 – 312 407 15,000 1,500 1.13 151 1/4" 10 8.0 93.2 7.5/1.8
2115QXPA 45632130 3/8" ring type 34 – 285 370 15,000 1,500 1.13 151 1/4" 10 8.0 94.0 7.5/1.8 2125PTiMAX 45587565 1/2" pin type 34 – 340 450 15,000 1,500 1.14 155 1/4" 10 8.0 93.2 7.5/1.8
2135QXPA 47517913001 1/2" ring type 68 – 680 1,057 9,800 1,250 1.80 187 1/4" 10 NA 90.7 13.3/4.6 2125QTiMAX 45587524 1/2" ring type 34 – 340 450 15,000 1,500 1.14 155 1/4" 10 8.0 93.2 7.5/1.8
2135PQXPA 47518811001 1/2" Pin Anvil 949 1,057 11,000 1,250 1.80 189 1/4" 10 NA 90.7 13.3/4.6 2135QPTiMAX 45535572 1/2" pin type 68 – 746 1,057 9,800 1,250 1.84 187 1/4" 10 11.3 94.2 13.3/4.6
2161XP 01372085 3/4" ring type 407 – 1,356 1,695 6,000 1,025 5.35 216 3/8" 13 21.5 94.7 9.8/1.8 2235QTiMAX 47517574001 1/2" ring type 90-1180 1,220 8,500 1,220 2.10 193 1/4" 10 11.3 91.9 9.0/2.8
2171XP 01378165 1" ring type 407 – 1,356 1,695 6,000 1,025 5.47 226 3/8" 13 21.5 94.7 10.3/1.3 2145QiMAX 45624327 3/4" ring type 271 – 1220 1,830 1,150 1,150 3.35 217 3/8" 13 15.1 96.3 8.7/2.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. 2155QiMAX 47123450 1" ring type 271 – 1220 1,830 1,150 1,150 3.40 225 3/8" 13 15.1 96.3 8.7/2.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

2100XP-Series Accessories 2235M-BOOT
2100MAX-Series Accessories
Model No. CPN Description Compatibility
2115M-BOOT 45602174 Protective tool boot in vinyl material 2115QXPA Model No. CPN Description Compatibility
2130-BOOT 45505369 Protective tool boot in vinyl material 2130XP 2115M-BOOT 45602174 Protective tool boot in vinyl material 2115PTiMAX, 2115QTiMAX, 2125PTiMAX, 2125QTiMAX Accessories
2135M-BOOT 45545977 Protective tool boot in vinyl material 2135QXPA 2235M-BOOT Protective tool boot in vinyl material 2235QPTiMAX, 2235QTiMAX
2235M-BOOT 47520153001
2161-BOOT 45505401 Protective tool boot in vinyl material 2161XP, 2171XP 2145M-BOOT 48385033 Protective tool boot in vinyl material 2145QiMAX, 2155QiMAX
2145M-BOOT

18 IngersollRandProducts.com/en-eu IngersollRandPr download.irtools.euoducts.com/en-eu 19
