Page 32 - Industrial & Production Tools 2019

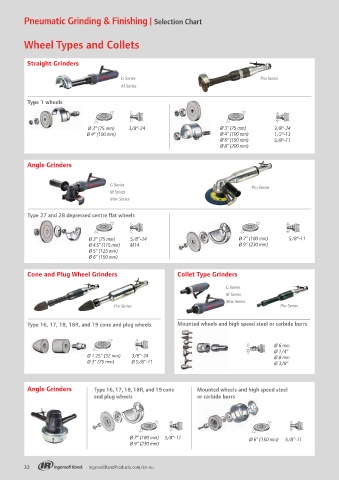

Pneumatic Grinding & Finishing | Selection Chart Pneumatic Grinding & Finishing | Air Grinders and Sanders

Wheel Types and Collets MAX-Series Grinders HHH Super-duty tools Cordless Tools Cordless Tools

HH Heavy-duty tools
H Maintenance-duty tools
Straight Grinders Our MAX-series air die grinders and air angle grinders are
economical, long-life tools. They are compact, lightweight, easy to

G Series Pro Series handle and include all bearing construction for increased reliability.
M Series 0.3 kW motor – Lube-free design eliminates contamination of the
work environment.
Type 1 wheels Enhanced grip design and low-profi le throttle lever provide for 5102MAX
extended run time without fatigue.
Piped away exhaust kit included. 5108MAX
Accessories:
Ø 3” (75 mm) 3/8”-24 Ø 3” (75 mm) 3/8”-24
Ø 4” (100 mm) Ø 4” (100 mm) 1/2”-13 301-700 (CPN 04552600): 1/4” collet.
Ø 6” (150 mm) 5/8”-11 301-700B (CPN 80128952): 6 mm collet.
Ø 8” (200 mm) 301-700C (CPN 80102346): 1/8” collet. Pneumatic Bolting & Drilling

0.88 hp and 12 000 rpm motor.
Angle Grinders Internal governor maximizes speed under load, increasing your 3445MAX-M
rate of material removal.
Low weight and enhanced grip design enables extended usage
G Series without fatigue.
Pro Series
M Series
Max Series
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
Type 27 and 28 depressed centre fl at wheels L
Model No. CPN kWatt rpm mm kg mm in mm l/s dB(A) m/s 2 /K (1)
Die Grinders
5102MAX 48488357 0.30 20,000 6 mm + 1/4" – – 0.64 180 1/4" NPT 10 11.8 84.1 3.3/1.1
Ø 3” (75 mm) 5/8”-24 Ø 7” (180 mm) 5/8”-11 5108MAX 48488340 0.30 25,000 6 mm + 1/4" – – 0.46 172 1/4" NPT 10 11.8 83.3 1.8/0.8 Grinding & Finishing
Ø 4.5” (115 mm) M14 Ø 9” (230 mm) Angle Grinders
Ø 5” (125 mm)
Ø 6” (150 mm) 3445MAX-M 45664240 0.66 12,000 – 115 M14 1.53 245 1/4" NPT 10 19.3 79.6 6.4/2.0
345MAX-M 45664257 0.66 12,000 – 125 M14 1.56 245 1/4" NPT 10 19.3 79.6 7.9/0.7
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
Cone and Plug Wheel Grinders Collet Type Grinders
VT 26 & VT 45 Turbine Grinders HHH Super-duty tools
G Series
HH Heavy-duty tools
M Series Whether in shipyards, foundries or forges: Ingersoll Rand’s brand H Maintenance-duty tools
Max Series
Pro Series Pro Series new family of turbine grinders takes the edge off that daily grind.
Its sheer power and extreme durability let you get more work done
in less time — even under heavy-duty conditions. And with oil
Type 16, 17, 18, 18R, and 19 cone and plug wheels Mounted wheels and high speed steel or carbide burrs
change and disc replacement being a snap, you can depend on the
change and disc replacement being a snap, you can depend on the
VT26 and VT45 turbine grinders to be ready when you are.
VT26 and VT45 turbine grinders to be ready when you are. Percussive Tools
Ø 6 mm
Ø 1/4”
Ø 1.25” (32 mm) 3/8”-24 Ø 8 mm
Ø 3” (75 mm) Ø 5/8”-11 Ø 3/8”
Turbine motor, 2.2 kW
VT 26VT 26 VT 45
VT 45
Angle Grinders Type 16, 17, 18, 18R, and 19 cone Mounted wheels and high speed steel
and plug wheels or carbide burrs
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet

L
Model No. kWatt rpm mm kg mm in mm l/s dB(A) m/s 2 /K (1)
Turbine Grinders
VT26A120SP955 2.60 12,000 – 125 M14 2.20 299 G 1/2" 13 37.5 – 3.7 Accessories
Ø 7” (180 mm) 5/8”-11 Ø 6” (150 mm) 5/8”-11 VT26A085SP98 2.60 8,500 – 180 M14 2.80 313 G 1/2" 13 37.5 – 4.0
Ø 9” (230 mm) VT45A085SP98 4.50 8,500 – 180 M14 4.00 324 G 1/2" 19 55.0 – <2.5
VT45A066SP995 4.50 6,600 – 230 M14 4.30 324 G 1/2" 19 55.0 – <2.5
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
33
32 IngersollRandProducts.com/en-eu IngersollRandPr download.irtools.euoducts.com/en-eu 33
