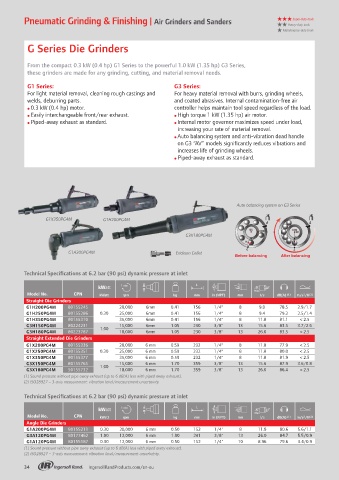

Page 34 - Industrial & Production Tools 2019

Pneumatic Grinding & Finishing | Air Grinders and Sanders HHH Super-duty tools Pneumatic Grinding & Finishing | Air Grinders and Sanders HHH Super-duty tools
HH Heavy-duty tools HH Heavy-duty tools
H Maintenance-duty tools H Maintenance-duty tools

G Series Die Grinders M Series Die Grinders Cordless Tools Cordless Tools

From the compact 0.3 kW (0.4 hp) G1 Series to the powerful 1.0 kW (1.35 hp) G3 Series, Super Duty Grinder Suited for heavier-duty grinding, cutting, cleaning, and polishing applications.
these grinders are made for any grinding, cutting, and material removal needs.
Engineered and built with Ingersoll Rand reliability and durability, the M Series has
G1 Series: G3 Series: the features operators want most.
For light material removal, cleaning rough castings and For heavy material removal with burrs, grinding wheels, M2 Series:
welds, deburring parts. and coated abrasives. Internal contamination-free air For heavier-duty applications in grinding, cutting, Spindle lock on angle models, allows faster, easier
0.3 kW (0.4 hp) motor. controller helps maintain tool speed regardless of the load. cleaning, and polishing. accessory changes.
Easily interchangeable front/rear exhaust. High torque 1 kW (1.35 hp) air motor. Powerful 0.75 kW (1 hp) lube-free air motor. Piped-away exhaust as standard.
Piped-away exhaust as standard. Internal motor governor maximizes speed under load, Internal motor governor maintains grinder speed and
increasing your rate of material removal.
Auto balancing system and anti-vibration dead handle manages air fl ow for effi cient energy use.
on G3 “AV” models signifi cantly reduces vibrations and Pneumatic Bolting & Drilling
increases life of grinding wheels.
Piped-away exhaust as standard.

M2H200RG4
M2A180RG4
M2 Series
Auto balancing system on G3 Series M2X200RG4
Erickson Collet

G1X350PG4M G1H200PG4M
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
G3X180PG4M N L Grinding & Finishing
Model No. CPN kWatt rpm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2)
G1A200PG4M Erickson Collet Straight Die Grinders
M2H180RG4 48421580 18,000 6 mm + 1/4" 0.77 213 3/8" 10 19.8 84.7 4.2/1.6
M2H200RG4 48421572 0.75 20,000 6 mm + 1/4" 0.77 213 3/8" 10 19.8 84.9 4.4/1.1
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet M2H250RG4 48393003 25,000 6 mm + 1/4" 0.77 213 3/8" 10 19.8 88.2 < 2.5
Straight Extended Die Grinders
L M2X075RG4 48405294 7,500 6 mm + 1/4" 1.35 304 3/8" 10 19.8 88.0 < 2.5
M2X180RG4 48418396 18,000 6 mm + 1/4" 1.22 332 3/8" 10 19.8 88.8 2.8/0.9
Model No. CPN kWatt rpm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2) M2X200RG4 48421655 0.75 20,000 6 mm + 1/4" 1.22 332 3/8" 10 19.8 84.9 < 2.5
Straight Die Grinders M2X250RG4 48421663 25,000 6 mm + 1/4" 1.22 332 3/8" 10 19.8 88.2 < 2.5
G1H200PG4M 80155245 20,000 6mm 0.41 156 1/4" 8 9.0 78.5 2.9/1.7 (1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust).
G1H250PG4M 80155286 0.30 25,000 6mm 0.41 156 1/4" 8 9.4 79.2 2.5/1.4 (2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
G1H350PG4M 80155310 35,000 6mm 0.41 156 1/4" 8 11.8 81.1 < 2.5
G3H150PG4M 80224231 15,000 6mm 1.05 230 3/8" 13 15.6 83.5 3.7/2.6 Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
G3H180PG4M 80223787 1.00 18,000 6mm 1.05 230 3/8" 13 26.0 83.5 < 2.5
Straight Extended Die Grinders L Percussive Tools
G1X200PG4M 80155336 20,000 6 mm 0.59 232 1/4" 8 11.8 77.9 < 2.5
G1X250PG4M 80155351 0.30 25,000 6 mm 0.59 232 1/4" 8 11.8 80.0 < 2.5 Model No. CPN kWatt rpm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2)
G1X350PG4M 80155377 35,000 6 mm 0.59 232 1/4" 8 11.8 81.9 < 2.5 Angle Die Grinders
G3X150PG4M 80155765 1.00 15,000 6 mm 1.70 359 3/8" 13 15.6 87.9 3.6/0.8 M2A120RG4 48421648 0.75 12,000 6 mm + 1/4" 1.62 227 3/8" 10 19.8 87.1 < 2.5
G3X180PG4M 50155732 18,000 6 mm 1.70 359 3/8" 13 26.0 86.4 < 2.5 M2A180RG4 48421697 18,000 6 mm + 1/4" 1.62 227 3/8" 10 19.8 88.8 3.1/1.0
(1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust). (1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust).
(2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. (2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
Erickson Collets for G1Series Erickson Collets for M2 and G3 Series
L
Model No. CPN Size Model No. CPN Size
Model No. CPN kWatt rpm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2)
Angle Die Grinders DG110-700-G2 03641743 3.2 mm G160HD-700-6MM 04261061 6 mm
G1A200PG4M 80155211 0.30 20,000 6 mm 0.50 152 1/4" 8 11.8 80.6 5.6/1.1 DG110-700-6MM 04261053 6 mm G160HD-700-1/4 03493962 6.35 mm
G3A120PG4M 80177462 1.00 12,000 6 mm 1.90 241 3/8" 13 26.0 84.7 5.5/0.9 DG110-700-G4 03641602 6.35 mm DG121HD-700-M8 03641321 8 mm Accessories
G1A120PG4M 80155187 0.30 12,000 6 mm 0.50 152 1/4" 10 8.96 79.6 3.4/0.9 DG120HD-700-G6 03641313 9.52 mm
(1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust).
(2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

35
34 IngersollRandProducts.com/en-eu IngersollRandPr download.irtools.euoducts.com/en-eu 35
