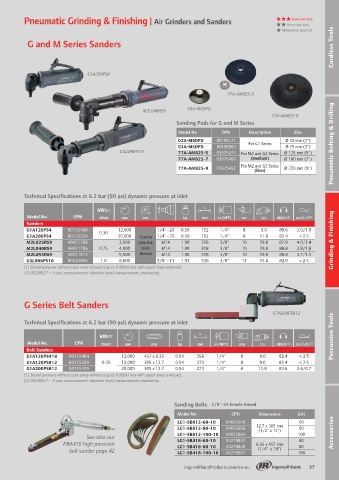

Page 37 - Industrial & Production Tools 2019

Pneumatic Grinding & Finishing | Air Grinders and Sanders HHH Super-duty tools Pneumatic Grinding & Finishing | Air Grinders and Sanders HHH Super-duty tools
HH Heavy-duty tools HH Heavy-duty tools
Cordless Tools Cordless Tools
H Maintenance-duty tools H Maintenance-duty tools
G and M Series Grinders G and M Series Sanders

G1A200PS4
Type 27 and 28 wheels

77A-AM825-5
M2A120RP945
03A-MEDPD
M2L040RS9
77A-AM825-9
Sanding Pads for G and M Series
Model No CPN Description Size
02A-MEDPD 80199177 For G1 Series Ø 50 mm (2")
03A-MEDPD 80198963 Ø 75 mm (3") Pneumatic Bolting & Drilling
G3L086PS10 77A-AM825-5 03675477 For M2 and G3 Series Ø 125 mm (5")
77A-AM825-7 03675469 (medium) Ø 180 mm (7")

(fi rm)
G3A120PP95AV 77A-AM825-9 03675451 For M2 and G3 Series Ø 230 mm (9”)
G1A200PP63 G3X180PH63

Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet

L
M2X180RH63 Model No. CPN kWatt rpm mm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2)
See also our VT22 Sanders
turbine grinder G1A120PS4 80155468 12,000 1/4" – 20 0.50 152 1/4" 8 9.0 80.6 3.0/1.0
page 59 G1A200PS4 80155534 0.30 20,000 Option 1/4" – 20 0.50 152 1/4" 8 11.8 82.4 < 2.5
M2L025RS9 48421788 2,500 (see the M14 1.90 318 3/8" 10 19.8 87.0 4.0/1.4 Grinding & Finishing
G3X180PH63
M2L040RS9 48421796 0.75 4,000 table M14 1.90 318 3/8" 10 19.8 88.8 2.8/1.8
M2L055RS9 48421812 5,500 above) M14 1.90 318 3/8" 10 19.8 88.8 3.7/1.1
G3L086PS10 80223803 1.0 8,600 5/8" – 11 1.93 330 3/8" 13 15.6 82.0 < 2.5
(1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust).
(2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.

Type 1 wheel G3X150PH64
G1H250PH63
G Series Belt Sanders
G1A200PS812
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
L
L Percussive Tools
Model No. CPN kWatt rpm mm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2)
Model No. CPN kWatt rpm mm kg mm in (NPT) mm l/s dB(A) (1) m/s 2 /K (2)
Angle Grinders Belt Sanders
G1A200PP63 80155419 0.30 20,000 75 3/8" – 24 0.59 152 1/4" 8 11.8 79.9 16.8/6.2 G1A120PS418 80155484 12,000 457 x 6.35 0.54 356 1/4" 8 9.0 82.4 < 2.5
< 2.5
9.0
M2A090RP95 48421622 9,000 125 M14 1.62 236 3/8" 10 19.8 87.7 4.6/1.6 G1A120PS812 80155500 0.30 12,000 305 x 12.7 0.54 273 1/4" 8 8 11.8 82.4 2.6/0.7
0.54
1/4"
273
83.6
80155559
20,000
305 x 12.7
M2A120RP945 48391981 0.75 12,000 115 M14 1.71 236 3/8" 10 19.8 87.0 5.1/1.5 G1A200PS812
M2A120RP95 48421606 12,000 125 M14 1.77 236 3/8" 10 19.8 87.0 5.0/0.9 (1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust).
(2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
G3L086PP95 (3) 80232408 8,600 125 M14 2.32 330 3/8" 13 26.0 84.0 5.0/1.6
G3A100PP96AV 80217052 1.0 10,000 150 M14 2.32 245 3/8" 13 26.0 86.1 4.8/1.9
G3A120PP945AV 80217037 12,000 115 M14 2.18 245 3/8" 13 15.6 88.7 4.8/1.5
G3A120PP95AV 80217045 12,000 125 M14 2.09 245 3/8" 13 26.0 88.7 5.0/1.9 Sanding Belts 3/8"-24 female thread
Straight Grinders
G1H250PH63 80155443 0.30 25,000 75 3/8" – 24 0.57 156 1/4" 8 9.4 81.1 10.7/3.3 Model No. CPN Dimensions Grit
M2X180RH63 48421580 0.75 18,000 75 3/8" – 24 1.48 339 3/8" 10 19.8 85.3 < 2.5 LG1-SB812-60-10 04025649 60
G3X150PH64 80155799 1.0 15,000 100 3/8" – 24 2.04 359 3/8" 13 15.6 84.5 2.5/0.8 LG1-SB812-80-10 04025656 12.7 x 305 mm 80
G3X180PH63 80155781 18,000 75 3/8" – 24 2.04 359 3/8" 13 26.0 88.8 2.8/0.9 LG1-SB812-100-10 04025664 (1/2" x 12") 100 Accessories
(1) Sound pressure without pipe away exhaust (up to 6 dB(A) less with piped away exhaust). See also our LG1-SB418-60-10 04279832 60
(2) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. PBA416 high precision LG1-SB418-80-10 04279840 6.35 x 457 mm 80
(3) Extended angle grinder. belt sander page 42 LG1-SB418-100-10 04279857 (1/4" x 18”) 100
37
