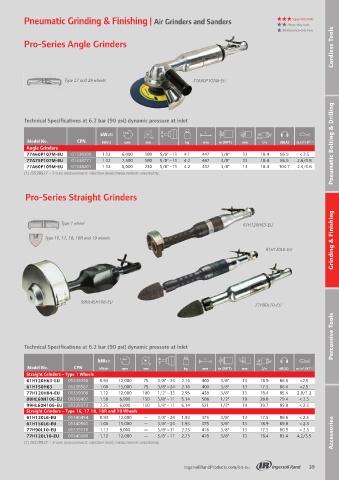

Page 39 - Industrial & Production Tools 2019

Pneumatic Grinding & Finishing | Air Grinders and Sanders HHH Super-duty tools Pneumatic Grinding & Finishing | Air Grinders and Sanders HHH Super-duty tools
HH Heavy-duty tools HH Heavy-duty tools
H Maintenance-duty tools H Maintenance-duty tools

Pro Series Grinders/Sanders Pro-Series Angle Grinders Cordless Tools Cordless Tools

Pro Series grinders incorporate a patented motor
controller which is designed to increase productivity
while enhancing operator safety. Adjustable side Type 27 and 28 wheels 77A60P107M-EU
handles, an ergonomic main handle, and self-locking
throttle all help to reduce operator fatigue.
Reliability:
Solid steel motor and arbor housing provide maximum
durability. Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet
Built-in mist lubricator automatically oils motor when
throttle is activated. L
Effi ciency: Model No. CPN kWatt rpm mm kg mm in (NPT) mm l/s dB(A) m/s 2 /K (1) Pneumatic Bolting & Drilling
Heavy-duty, double-row ball bearings assure long life Angle Grinders
and smooth operation. 77A60P107M-EU 01338300 1.12 6,000 180 5/8" – 11 4.1 447 3/8" 13 18.4 85.9 < 2.5
85.9
Auto balancing system on angle and vertical models – 77A75P107M-EU 01338771 1.12 7,500 180 5/8" – 11 4.2 447 3/8" 13 18.4 104.7 2.6/0.8
2.4/0.8
1.12
6,000
01338201
18.4
13
447
3/8"
4.2
230
5/8" – 11
77A60P109M-EU
reduces vibration and increases abrasives lifetime. (1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
77H90L10-EU
Pro-Series Straight Grinders
Auto balancing Pro-Series motor controller
system on prevents over-speeding and Type 1 wheel 61H120H63-EU
Pro-Series angle N manages air fl ow for effi cient
and vertical models energy use Type 16, 17, 18, 18R and 19 wheels Grinding & Finishing
61H120L6-EU

Pro-Series Straight Grinders/Collet

99HL45H108-EU
77H90L10-EU
Erickson Collet
61H120G4-EU
Percussive Tools

Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet Technical Specifi cations at 6.2 bar (90 psi) dynamic pressure at inlet

L L
Model No. CPN kWatt rpm kg mm in (NPT) mm l/s dB(A) m/s 2 /K (1) Model No. CPN kWatt rpm mm kg mm in (NPT) mm l/s dB(A) m/s 2 /K (1)
Straight Grinders - Erickson Collet Straight Grinders – Type 1 Wheels
61H150G4-EU 01339316 1.00 15,000 6 mm 1.9 394 3/8" 13 18.9 89.8 < 2.5 61H120H63-EU 01339290 0.93 12,000 75 3/8" – 24 2.16 400 3/8" 13 18.9 86.6 <2.5
61H120G4-EU 01338391 0.93 12,000 6 mm 1.9 394 3/8" 13 17.5 86.6 < 2.5 61H150H63 01238567 1.00 15,000 75 3/8" – 24 2.16 400 3/8" 13 17.5 86.4 <2.5
(1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty. 77H120H84-EU 01339308 1.12 12,000 100 1/2" – 13 2.95 438 3/8" 13 18.4 85.4 2.8/1.2
88HL60H106-EU 01339407 1.50 6,000 150 5/8" – 11 5.14 508 1/2" 19 28.8 79.4 < 2.5
99HL60H106-EU 01339373 2.25 6,000 150 5/8" – 11 6.14 521 1/2" 19 39.7 85.8 < 2.5
Straight Grinders – Type 16, 17 18, 18R and 19 Wheels
Erickson Collets for 61H Series 61H120L6-EU 01340454 0.93 12,000 — 3/8" – 24 1.93 375 3/8" 13 17.5 86.6 < 2.5
61H150L6-EU 01340561 1.00 15,000 — 3/8" – 24 1.93 375 3/8" 13 18.9 89.8 < 2.5
Model No. CPN Size
77H90L10-EU 01339118 1.12 9,000 — 5/8" – 11 2.73 418 3/8" 13 17.5 80.9 < 2.5
G160HD-700-6MM 04261061 6 mm 77H120L10-EU 01340280 1.12 12,000 — 5/8" – 11 2.73 418 3/8" 13 18.4 85.4 4.2/3.5 Accessories
G160HD-700-1/4 03493962 1/4" (1) ISO28927 – 3-axis measurement: vibration level/measurement uncertainty.
DG121HD-700-M8 03641321 8 mm
DG120HD-700-G6 03641313 3/8"
